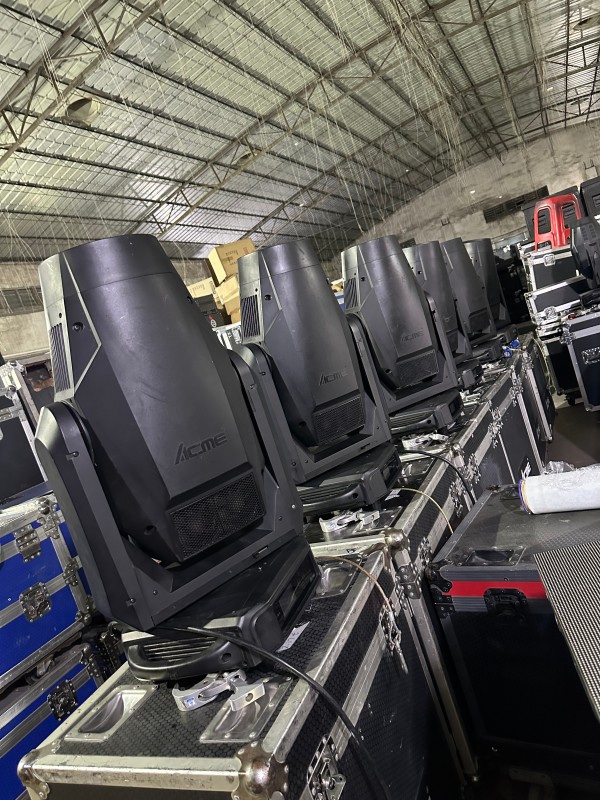

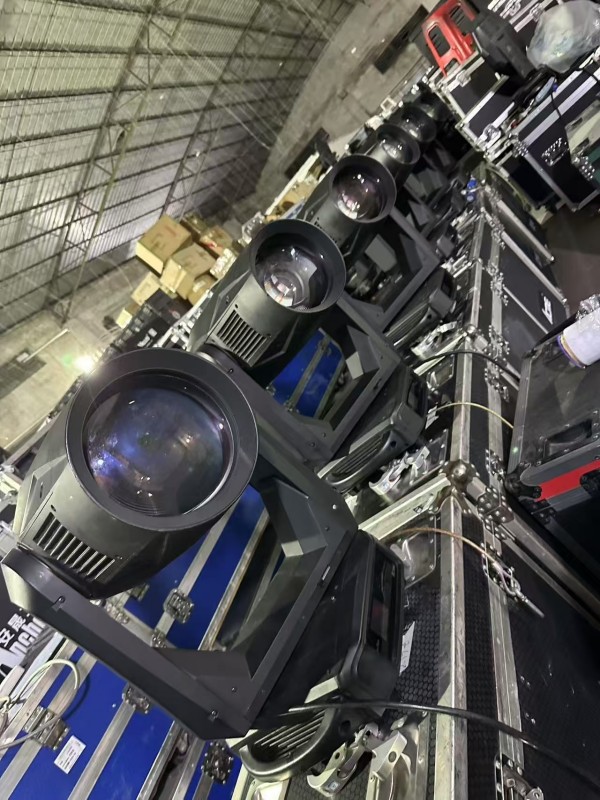

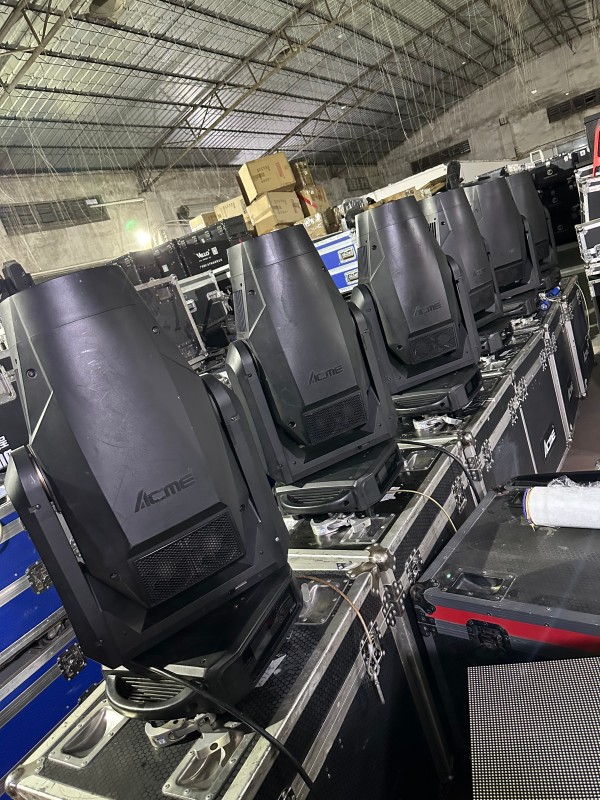

ACME XA-1000 BSWF

ACME XA-1000 BSWF II integrates four functions: beam, dyeing, pattern, and cutting. With its pure color, uniform light spot, high output, strong penetration, high CRI and high output switching modes, it can meet the needs of TV programs, concerts, opening and closing ceremonies of large-scale sports games, etc.

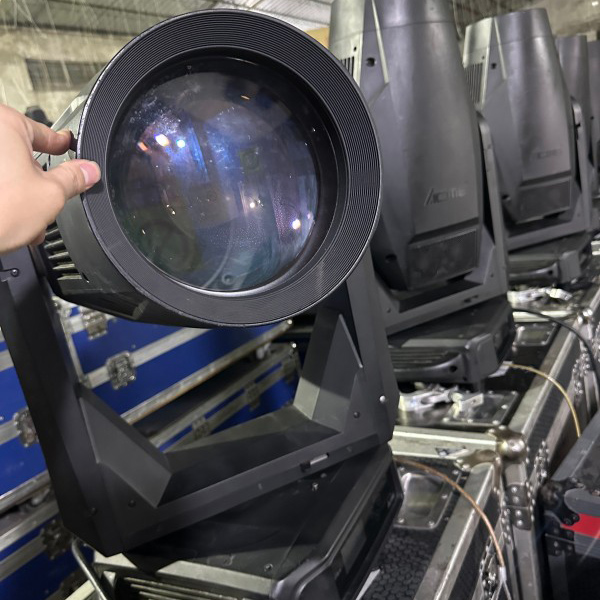

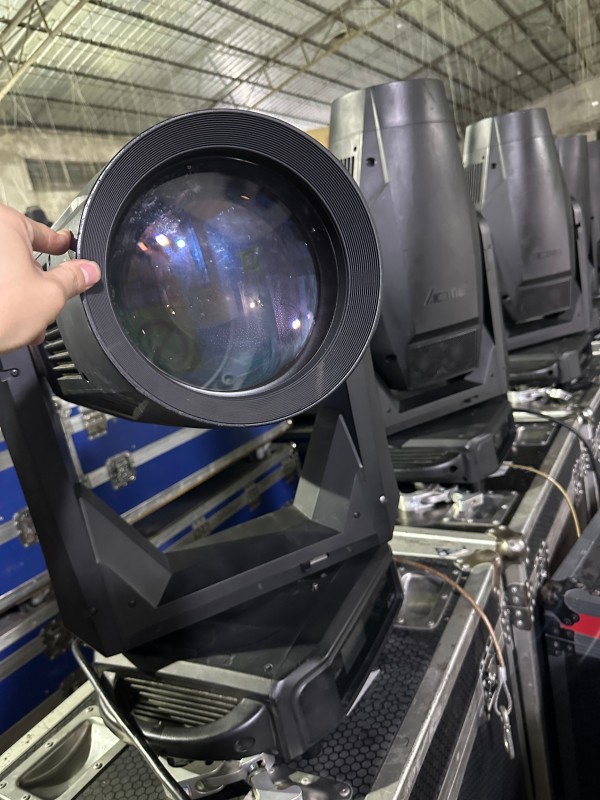

Light output lens diameter: 187mm
Color mixing system: Linear CMY color mixing
Linear CTO color temperature adjustment (2700K-6500K)
Color temperature: 6500K
Equipped with high CRI plate for switching high CRI mode
Cutting system: 4 gratings for fast and smooth cutting, the cutting direction and angle of each grating can be independently controlled; a single grating can be completely closed, and the entire cutting module can be rotated ±45°
Rotating pattern plate: 1 rotating pattern plate, 6 patterns plus white circle, easy to replace
Fixed pattern plate: 1 fixed pattern plate, 8 patterns plus white circle
Color plate: 1 color plate, 5 fixed colors plus white
Equipped with a bidirectional rotating prism
Mechanical linear aperture
Two high-brightness atomizers (mild and medium) made of new materials, which can be cut in and superimposed separately
Mechanical zoom and focus
Outstanding strobe effect, variable speed
Random strobe and pulse effect
Adopt new heat pipe cooling technology to efficiently solve heat dissipation and effectively reduce noise
Contains two modes: standard mode and power saving mode
No flicker under high-definition camera
Dust-proof and oil-proof design
Fengyun System-Performance Rental
MDG Cloud Platform
SOLAR FLARE
XA-1000 BSWF II

T/CETA001-2021 Standard Model
BSWP-LED1000BG/D20

Light source: SUL1000X
LED expected service life: 20,000 hours*Data provided by light source supplier
CRI:
High output mode Ra>70
High CRI mode Ra>90

Advanced optical system ensures clear image quality
10x efficient zoom optical system
Zoom range: 5° - 50°
Luminous output: 35,000 lumens

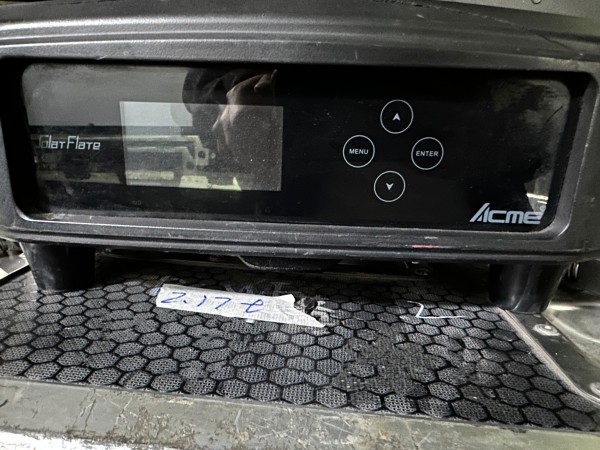

4 touch buttons
Display: LCD display
Built-in battery: Built-in NiMH battery, can operate the control system normally when power is off
Control protocol: DMX512, Art-Net, RDM, sACN
Wireless function (optional)
DMX channel mode: 4 types
Control channels: 20, 25, 29, 34
Artificial Intelligence Internet of Things System: AIOT Fengyun System, "Yi Data" automatic management system (optional)
X-axis/Y-axis: 16 bit precision scanning
Electronic dimming: 8 bit or 16 bit
Update software via DMX connection

X-axis rotation angle: 540°
Y-axis rotation angle: 270°
Fixed lock: horizontal/vertical lock
X-axis/Y-axis position automatic correction

1 rotating pattern wheel, 6 patterns plus white circle, easy to replace
Gobo inner diameter: 25 mm
Gobo outer diameter: 37.3 mm
Thickness: 1.1 mm
Maximum acceptable thickness: 4mm
High-quality glass material
Equipped with a "slot and lock" system for easy replacement of Gobos

1 fixed pattern wheel, 8 patterns plus white circle, easy to replace

Color wheel

1 color wheel, 5 fixed colors plus white

Cutting system

4 gratings for fast and smooth cutting, each grating cutting direction and angle can be independently controlled
Fast and smooth operation, adjustable speed
Cutting system can move smoothly and accurately position
Single piece can completely block light, the entire cutting module can rotate ±45°

Adaptive power supply
Input voltage range: 100-240V~ 50/60Hz
Power: 1370 W
Direct line, Power Connector input
Signal input/output: three-core and five-core XLR sockets, RJ45 interface

Lighting dimensions:
Height: 836mm (32.9")
Width: 465 mm (18.3")
Depth: 352 mm (13.8")
Net weight: 44.6 kg (98.3 lbs)
Flight box dimensions:
Height: 715 mm (28.1")
Width: 905 mm (35.6")
Depth: 595 mm (23.4")
Weight: 93.8kg (206.8lbs) (1 in 1 standard)
Operating Environment
Maximum Ambient Temperature: 40°C
Minimum Operating Temperature: 0°C
Maximum Surface Temperature: 65°C

CE certification
cETLus certification

Can be mounted horizontally or vertically
Universal operating position
2 pairs of 1/4 turn locking holes on the bottom
2 fixed folding light hooks for 50mm truss
2 pairs of 1/4 turn M12 locking holes for detachable light hooks for 70mm truss
Safety cable connection point
Fixed lock: horizontal/vertical lock
