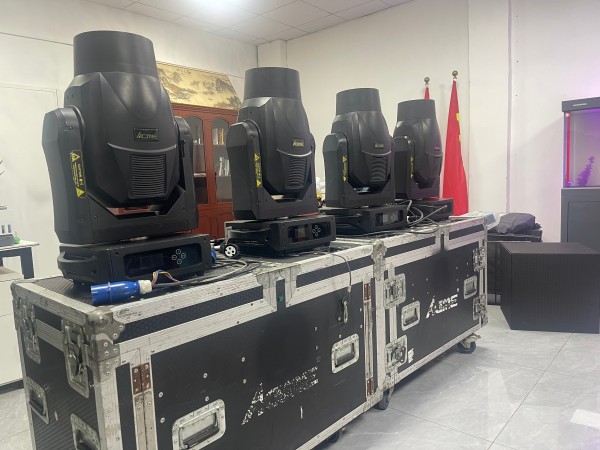

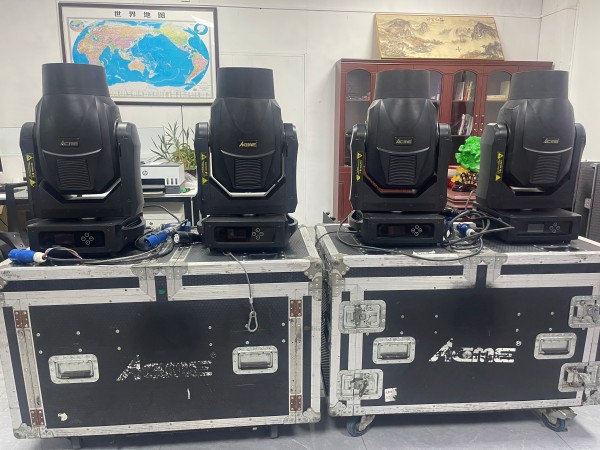

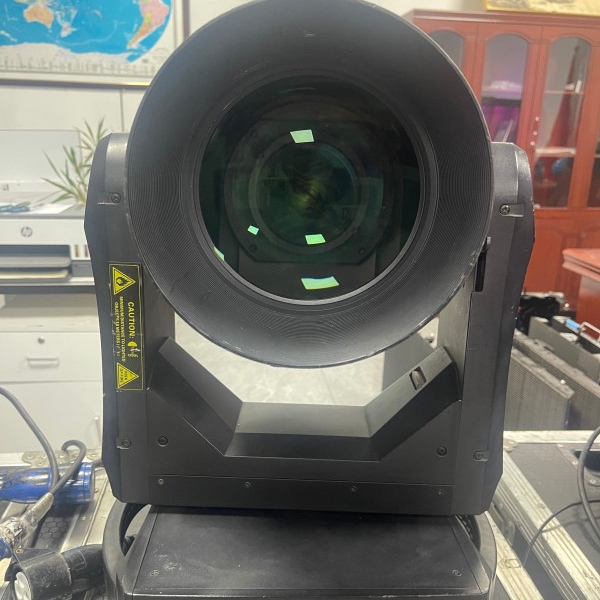

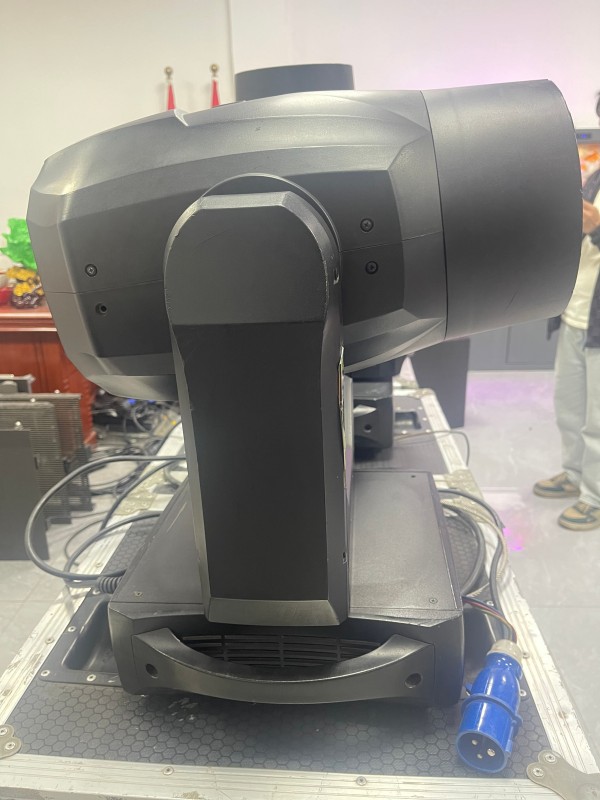

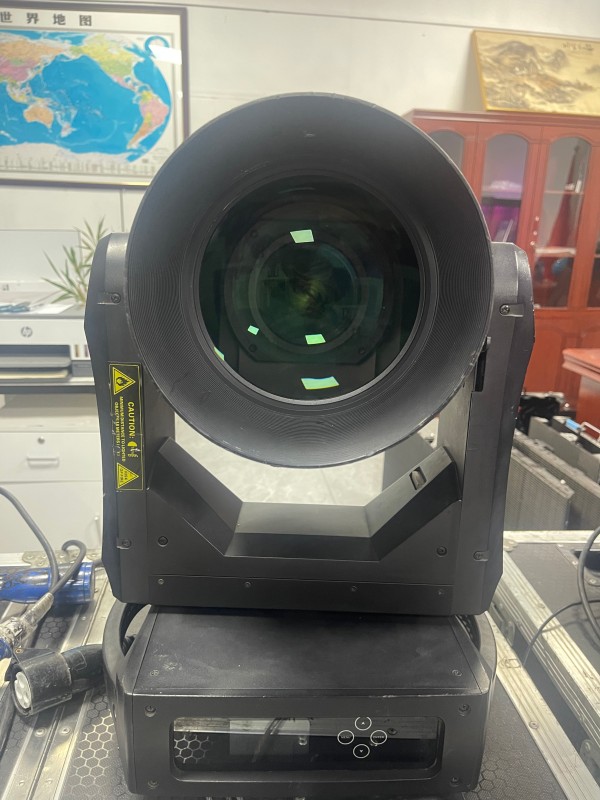

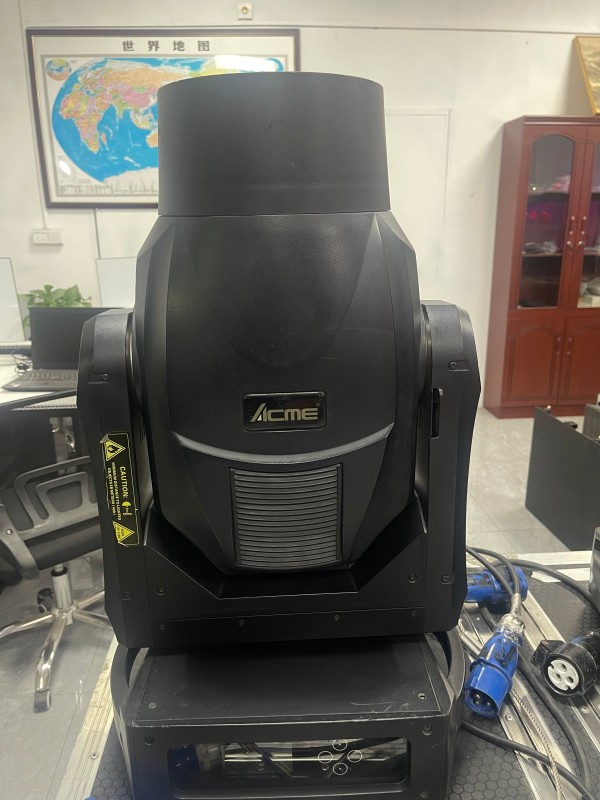

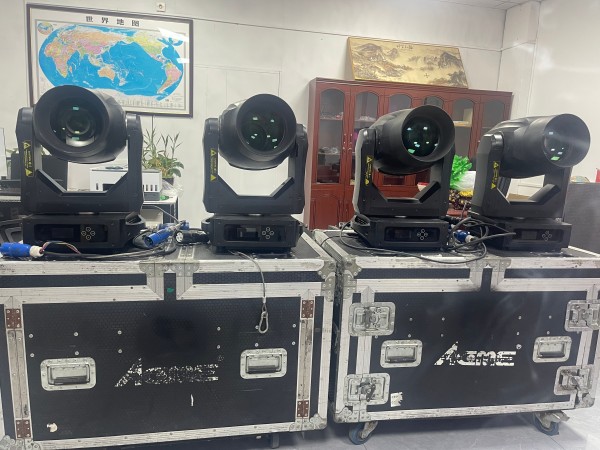

ACME XP-470 BSW

ACME XP-470 BSW (also known as XP-20R) is a versatile three-in-one computer moving head light, widely used in stages, performances and large-scale events. The following is its main parameter information:

1. Basic parameters
Model: ACME XP-470 BSW (XP-20R).
Rated voltage: AC 100V-240V, 50/60Hz.
- Light source specifications: Philips MSD Platinum 20R.
- Power: 600W.
- Lamp weight: 28.5kg.

### 2. **Beam angle**
- **BEAM mode**: 2°~7°.
- **SPOT mode**: 5°~32°.
- **WASH mode**: 8°~70°.

### 3. **Functional features**
- **Linear dimming**: Support 0~100% mechanical linear dimming.
- **Strobe function**: pulse strobe, supports synchronous/asynchronous strobe, strobe speed 1-20 times per second.
- **Fixed color**: 1 fixed color plate, 14 color plates + white light, supports linear color conversion and half-color rainbow effect.
- **Dynamic pattern**: 1 rotating pattern plate, 7 optional pattern plates + white light, supports variable speed jitter/bidirectional rotation effect.
- **Static pattern**: 1 fixed pattern plate, 18 patterns + white light, supports variable speed jitter/bidirectional rotation effect.
- **Prism effect**: 1 8-prism and 1 16-prism, supports independent or composite effects.
- **Focus function**: electronic focus.
- **Softening effect**: 1 softening mirror, the light spot is soft and natural.

### 4. **Motion range**
- **Horizontal angle**: 540°.
- **Vertical angle**: 270°, using 16Bit precision fine-tuning, supporting automatic return correction function.

### 5. **Control and display**
- **Control channel**: 3 control channel mode selections (20/21/24).
- **Display interface**: Widescreen LCD display interface in Chinese and English.

### 6. **Protection and packaging**
- **Protection level**: IP20.
- **Lamp packaging**: Waterproof and shockproof aviation box or carton.
- **Accessories**: 1 manual, 2 safety ropes, 2 aluminum alloy lamp hooks, 1 5-meter signal line.

### 7. **Application scenarios**
- This lamp is often used in large-scale performances, award ceremonies, TV studios and other occasions, and is known for its versatility and high brightness.
