View MoreVisionPro HD IP+ offers all of the benefits that come with a high-definition all-in-one direct view LED viewing experience, plus it can be used outdoors. This smart TV alternative solution is equipped with an IP-65 rating and 4,000 nits for ultimate outdoor brightness.
All three of the sizing options come with Novastar processing technologies to ensure ease of use and quality of output.
Move your party to the backyard with industry leading visuals – made for outdoor viewing, packed with all the pixels and weather protected technology, this visually stunning solution upgrades your game day in all the right ways.
This system features a removable stand for easy position adjustments to suit different viewing preferences. Once in place, secure it by twisting the fixed switch on the wheel side.
This versatile and powerful solution is great for communicating with the public, enhancing brand visibility, and entertaining in outdoor settings.
This LED interactive playback and control processor is equip with easy plug-and-use features developed with android technology. The system has flexible integration for smart maintenance that is equipped with three HDMI 2.0 inputs, dual wifi, and eye comfort mode.
| Series | Outdoor TV Series | Outdoor TV Series | Outdoor TV Series |
| Display size | 114 inches | 130 inches | 173 inches |
| Resolution/dots | 1920*1296 | 1920*1280 | 2048*1152 |
| Pitch | 1.2 | 1.5 | 1.8 |
| Pixels/Sq M | 6,40,000 | 4,44,444 | 2,84,444 |
| LED Type | Flip chip high brightness SMD 1010 | Flip chip high brightness SMD 1010 | Flip chip high brightness SMD 1010 |
| Pixel Matrix (Panel) | 384*432 | 320*360 | 256*288 |
| Nits | 4000 | 4000 | 4000 |
| Weight (lbs) (Display) | 314 | 377 | 670 |
| Weight (Kg) (Display) | 142.5 | 171 | 304 |
| Refresh Rate Hz | 3840 | 3840 | 3840 |
| Panel Width (mm) | 480 | 480 | 480 |
| Panel Height (mm) | 540 | 540 | 540 |
| Panel Depth (mm) | 66 | 66 | 66 |
| Panel Width (In) | 18.9 | 18.9 | 18.9 |
| Panel Height (In) | 21.26 | 21.26 | 21.26 |
| Panel Depth (In) | 2.6 | 2.6 | 2.6 |
| Viewing Angle (Horizontal) | 160 | 160 | 160 |
| Viewing Angle (Vertical) | 160 | 160 | 160 |
| Dispay Width mm | 2400 | 2880 | 3840 |
| Display Height mm | 1620 | 1620 | 2160 |
| Watts Per Tile Avg | 14.9 | 14.9 | 14.9 |
| Watts Per Tile Max | 44.71 | 44.71 | 44.71 |
| Watts/m2 Avg | 250 | 250 | 250 |
| Watts/m2 Max | 720 | 720 | 720 |
| Grey Scale | 16384 | 16384 | 16384 |
| Control | Novastar | Novastar | Novastar |
| Scan | 1/36 | 1/30 | 1/24 |
| Contrast | 10,000:1 | 10,000:1 | 10,000:1 |
| Serviceability | Front and rear | Front and rear | Front and rear |
| Operating Temp | -20℃~+60℃ | -20℃~+60℃ | -20℃~+60℃ |
| Connectors | Yes | Yes | Yes |
| IP Rating | IP65 | IP65 | IP65 |
| Certifications | ETL FCC CE ROHS | ETL FCC CE ROHS | ETL FCC CE ROHS |
| Max Watts (Display) | 2800 | 3359 | 5972 |
VisionPro HD IP+ offers all of the benefits that come with a high-definition all-in-one direct view LED viewing experience, plus it can be used outdoors. This smart TV alternative solution is equipped with an IP-65 rating and 4,000 nits for ultimate outdoor brightness.
All three of the sizing options come with Novastar processing technologies to ensure ease of use and quality of output.













Would you like more information? We are happy to provide a free quote and consultation for your LED display technology project.

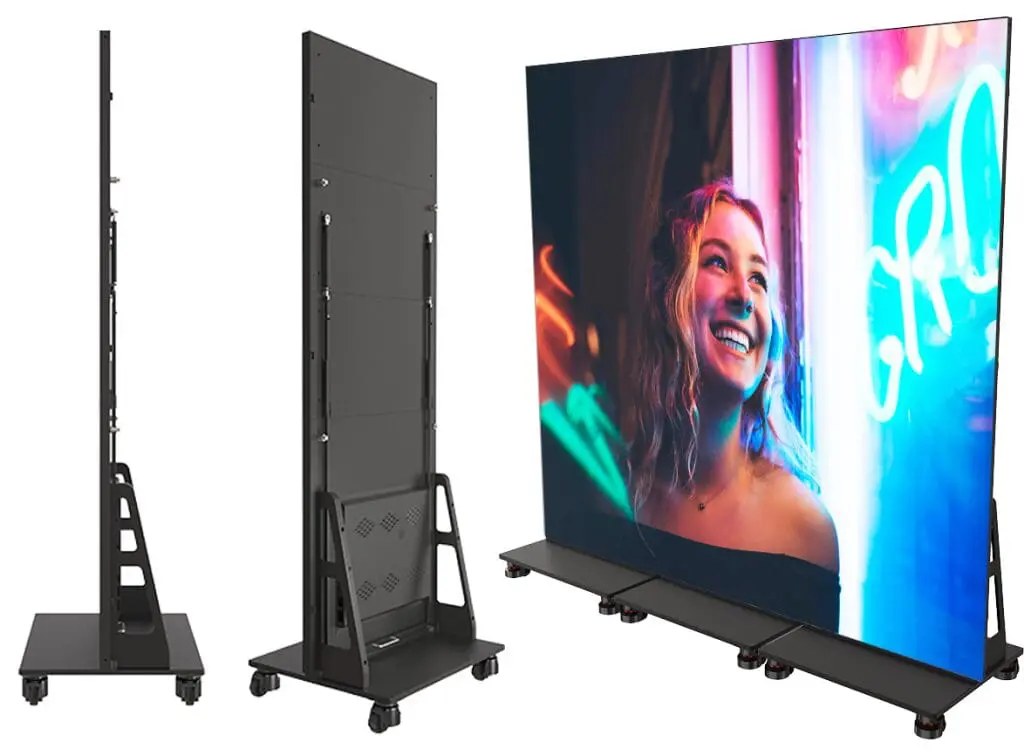

The PixelFLEX ReFLEXion Series is a versatile family of five self-contained, turnkey LED video displays designed to elevate any commercial environment. With sleek, slim profiles and mobility in mind, these units can be easily moved throughout your space to maximize viewer engagement, whether indoors or outdoors.

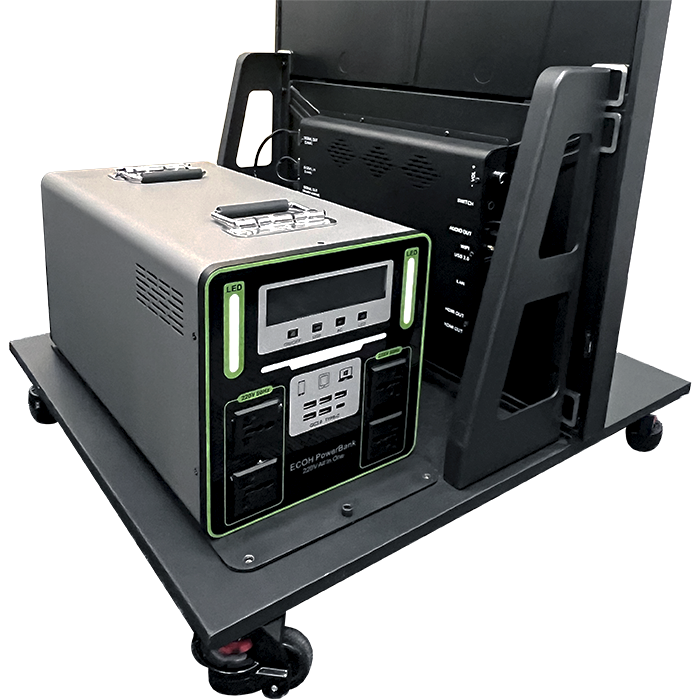

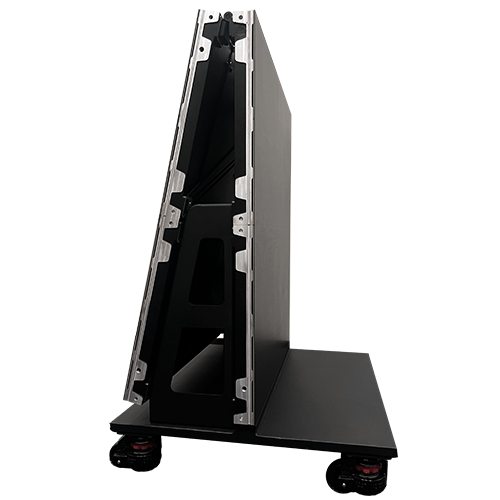

Available in traditional powered, battery-powered, foldable, and tabletop models, with the option to stack up to five units, the ReFLEXion Series offers a dynamic, modern alternative to traditional backlit signage. From retail to events, each model delivers vibrant, attention-grabbing visuals in a user-friendly, plug-and-play package.



Resolution is often key in most installs of LED. The ReFLEXion pitch is one of the highest resolution displays on the market.
Your ReFLEXion display is calibrated directly out of the box to help decrease failure, and insure perfect color and brightness of your LED screen.

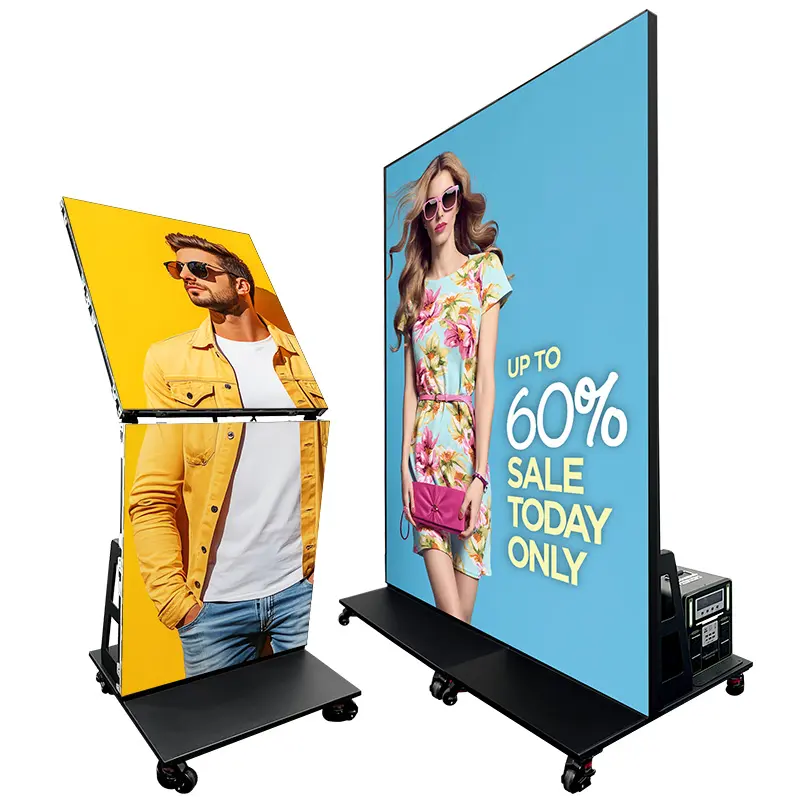

Perfect display to promote your message wherever needed throughout any commercial, hospitality, retail or entertainment environment.
With an integrated media player and local storage your stand can play back any .jpeg, video or visual media. Create a schedule to keep content fresh, up to date, and relevant to your audience.
ReFLEXion displays support WIFI allowing simple operation by Android/iOS or PC.
Easy to operate interface, updated via USB, DVI, or network connections.
In addition, these displays being offered in varies sizes and proportions to maximize your application need for easy video playback.
Knowing that each installation and use is different for a customer, ReFLEXion displays can be easily wall mounted both horizontally and vertically, as well as be a free-standing display with its stand option allowing for unprecedented portability.
Engineered with latest technologies to give it a smoother, slimmer profile. It’s crafted in beautiful anodized lightweight yet durable aluminum, to make the entire product weigh less than 35kg, making it more portable and easier to install.
The stands are fully field serviceable which make service and upkeep to the ReFLEXion package easier than ever before.
Everyone’s brand is unique and ReFLEXion displays can be customized to keep your brand identity intact. The powder coated frame can be nearly any color you can image to help tie your display into the design of your space.
Update your ReFLEXion content with our built in media player via Wifi or USB. HDMI input and output allows external 3rd party software.
With the ReFLEXion’s on-board media player, content can be sent and displayed wirelessly.
Link up to six ReFLEXions for the 1.8mm, and up to eight for the 2.5mm to create a 1920-pixel-wide display.
Show the content of on one display on other displays simultaneously via HDMI connection between each displays input and output.
Split and show the same piece of content on multiple ReFLEXion displays at the same time creating a large surface video display.
A self-contained, turnkey display perfect for commercial video display that is a dynamic replacement for your traditional pop-up print signage.
Developed to compete directly with other technologies, our solution combines high brightness, high pixel densities, and theft resistant IP rated enclosures. All of this to ensure that your investment is brighter, lasts longer with replaceable parts, and is ready to outshine your competition for years to come.
reFLExion IP+ is a dynamic replacement for traditional back-lit signage for outdoor applications of any kind.
A self-contained, turnkey display perfect for commercial video display that is a dynamic replacement for your traditional pop-up print signage.



Would you like more information? We are happy to provide a free quote and consultation for your LED display technology project.
reFLEXion IP+ is an all-in one, complete LED stand solution designed for outdoor installations. Its custom configurations and easy serviceability makes it the perfect video display all commercial video display needs. It is available in several pitch options that can easily outperform direct sunlight exposure to help maximize your screens viewing. reFLExion IP+ is a great dynamic replacement for traditional backlit signage for outdoor applications of any kind.
reFLEXion IP+ is available in the following pixel pitches: 3.9mm, 5.2mm, 6.25mm
The reFLEXion IP+ is a dynamic outdoor rated LED display that can withstand nearly any adverse weather conditions. Each stand has auto brightness adjustment to ensure proper brightness of your display 24/7.
Perfect display to promote your message wherever needed throughout any commercial, hospitality, retail or entertainment environment.
A single sided unit features one side of the unit with an LED display with the rear of the unit being blank for configurations where the display will back up to a wall.
A single-sided backlit unit features one side of the unit with an LED display while the rear of the unit features a backlit lightbox for a static print banner for budget-conscious customers.
A double-sided unit features dual LED screens on each side of the unit. Each side can be independently controlled or display the same content on each side to utilize the screen how you see fit.
As a self contained unit each stand can be controlled with an internal media player allowing for easy media management built into each enclosure.
reFLEXion IP+ supports WiFi allowing simple operation by updating content via network connection.
The stand is fully field serviceable which makes service and upkeep to the reFLEXion IP+ LED display easier than ever before.
| Display size | 65 inches | 65 inches | 65 inches | 75 inches | 75 inches | 75 inches | 86 inches | 86 inches | 86 inches |
| Resolution/dots (Display) | 576*864 | 480*720 | 360*540 | 576*1080 | 480*900 | 360*675 | 768*1296 | 640*1080 | 480*810 |
| Pitch | 1.5 | 1.8 | 2.5 | 1.5 | 1.8 | 2.5 | 1.5 | 1.8 | 2.5 |
| Pixels/Sq M | 4,09,600 | 2,84,444 | 1,60,000 | 4,09,600 | 2,84,444 | 1,60,000 | 4,09,600 | 2,84,444 | 1,60,000 |
| LED Type | Flip chip high brightness SMD 1010 | Flip chip high brightness SMD 1010 | Flip chip high brightness SMD 1010 | Flip chip high brightness SMD 1010 | Flip chip high brightness SMD 1010 | Flip chip high brightness SMD 1010 | Flip chip high brightness SMD 1010 | Flip chip high brightness SMD 1010 | Flip chip high brightness SMD 1010 |
| Nits | 4000 | 4000 | 4000 | 4000 | 4000 | 4000 | 4000 | 4000 | 4000 |
| Weight (lbs) (Panel) | 11.46 & 8.82 | 11.46 & 8.82 | 11.46 & 8.82 | 11.46 & 8.82 | 11.46 & 8.82 | 11.46 & 8.82 | 11.46 | 11.46 | 11.46 |
| Weight (Kg)(Panel) | 5.2 & 4 | 5.2 & 4 | 5.2 & 4 | 5.2 & 4 | 5.2 & 4 | 5.2 & 4 | 5.2 | 5.2 | 5.2 |
| Refresh Rate Hz | 3840 | 3840 | 3840 | 3840 | 3840 | 3840 | 3840 | 3840 | 3840 |
| Viewing Angle (Horizontal) | 165 | 165 | 165 | 165 | 165 | 165 | 165 | 165 | 165 |
| Viewing Angle (Vertical) | 165 | 165 | 165 | 165 | 165 | 165 | 165 | 165 | 165 |
| Monument Width (mm) | 1130 | 1130 | 1130 | 1130 | 1130 | 1130 | 1430 | 1430 | 1430 |
| Monument Height (mm) | 2050 | 2050 | 2050 | 2390 | 2390 | 2390 | 2750 | 2750 | 2750 |
| Monument Depth (mm) | 250 | 250 | 250 | 250 | 250 | 250 | 250 | 250 | 250 |
| Monument Width (In) | 44.49 | 44.49 | 44.49 | 44.49 | 44.49 | 44.49 | 56.3 | 56.3 | 56.3 |
| Monument Height (In) | 80.7 | 80.7 | 80.7 | 94.1 | 94.1 | 94.1 | 108.26 | 108.26 | 108.26 |
| Monument Depth (In) | 9.84 | 9.84 | 9.84 | 9.84 | 9.84 | 9.84 | 9.84 | 9.84 | 9.84 |
| Monument Max Watts (Single Sided) | 790w | 790w | 790w | 987w | 987w | 987w | 1579.5w | 1579.5w | 1579.5w |
| Monument Max Watts (Double Sided) | 1580w | 1580w | 1580w | 1974w | 1974w | 1974w | 3159w | 3159w | 3159w |
| Monument Weight (Lbs) (Single Sided) | 410lbs | 410lbs | 410lbs | 496lbs | 496lbs | 496lbs | 617.3lbs | 617.3lbs | 617.3lbs |
| Monument Weight (Kg) (Single Sided) | 186kg | 186kg | 186kg | 225kg | 225kg | 225kg | 280kg | 280kg | 280kg |
| Monument Weight (Lbs) (Double Sided) | 487lbs | 487lbs | 487lbs | 595lbs | 595lbs | 595lbs | 749.5lbs | 749.5lbs | 749.5lbs |
| Monument Weight (Kg) (Double Sided) | 221kg | 221kg | 221kg | 270kg | 270kg | 270kg | 340kg | 340kg | 340kg |
| Watts Per Tile Avg | 10.63 | 10.63 | 10.63 | 10.63 | 10.63 | 10.63 | 10.63 | 10.63 | 10.63 |
| Watts Per Tile Max | 32.4 | 32.4 | 32.4 | 32.4 | 32.4 | 32.4 | 32.4 | 32.4 | 32.4 |
| Watts/m2 Avg | 230 | 230 | 230 | 230 | 230 | 230 | 230 | 230 | 230 |
| Watts/m2 Max | 660 | 660 | 660 | 660 | 660 | 660 | 660 | 660 | 660 |
| Grey Scale | 22bit | 22bit | 22bit | 22bit | 22bit | 22bit | 22bit | 22bit | 22bit |
| Control | Novastar | Novastar | Novastar | Novastar | Novastar | Novastar | Novastar | Novastar | Novastar |
| Scan | 1/27 | 1/30 | 1/27 | 1/27 | 1/30 | 1/27 | 1/27 | 1/30 | 1/27 |
| Contrast | 10,000:1 | 10,000:1 | 10,000:1 | 10,000:1 | 10,000:1 | 10,000:1 | 10,000:1 | 10,000:1 | 10,000:1 |
| Serviceability | Front | Front | Front | Front | Front | Front | Front | Front | Front |
| Operating Temp | -20℃~+60℃ | -20℃~+60℃ | -20℃~+60℃ | -20℃~+60℃ | -20℃~+60℃ | -20℃~+60℃ | -20℃~+60℃ | -20℃~+60℃ | -20℃~+60℃ |
| Connectors | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| IP Rating | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 |
| Certifications | ETL FCC CE ROHS | ETL FCC CE ROHS | ETL FCC CE ROHS | ETL FCC CE ROHS | ETL FCC CE ROHS | ETL FCC CE ROHS | ETL FCC CE ROHS | ETL FCC CE ROHS | ETL FCC CE ROHS |
Developed to compete directly with other technologies, our solution combines high brightness, high pixel densities, and theft resistant IP rated enclosures. All of this to ensure that your investment is brighter, lasts longer with replaceable parts, and is ready to outshine your competition for years to come.
reFLExion IP+ is a dynamic replacement for traditional back-lit signage for outdoor applications of any kind.



Would you like more information? We are happy to provide a free quote and consultation for your LED display technology project.
VisionPro Go is a revolutionary on-the-go LED display designed to travel without compromising on best-in-class visuals.
With automatic opening and closing functionality, this versatile solution is ideal for a wide range of applications, including temporary command centers, rental services, hybrid meeting spaces, educational institutions, events, road shows, and any indoor environment that requires a portable display system with an effortless install.
Resolution is often key in most installs of LED. The VisionPRO Go pitch is one of the highest resolution displays on the market..
Your tiles are calibrated directly out of the box to help decrease failure, and ensure perfect color and brightness of your LED screen.
VisionPRO Go brings the connectivity of smart TVs to a larger more dynamic LED display.
VisionPRO Go comes in four sizes 108″ and 136″ Both of which are in full HD with a 1920x1080p resolution.
Android-based interface with built-in applications consumers know and love.
Built-in applications including the Google Suite, YouTube, and Chrome internet browser among many others.
The pre-installed interface within VisionPRO Go allows for screen sharing across any WiFi network, compatible with both PC & Mac. Share up to 4 devices at one time wirelessly, or 1 via hard wire HMDI. Pictured above you can see the Single, Dual, and Quad modes of screen sharing.
VisionPRO Go a bezel-less, seamless display unlike traditional TV walls.
VisionPRO Go has a naturally reflection-free surface to reduce any room or light interference with the display.
Bright brights and dark darks, taking the depth of black, contrast and quality of images where other technology just cannot compete.
Includes a built Android remote and two USB ports for a wireless keyboard and mouse.
Designed for true out-of-the-box ease, this LED display solution raises directly from its built-in travel case and unfolds into a full 16:9 aspect ratio at the press of a single button.
Engineered for convenience and user-friendliness, it comes pre-configured for immediate functionality—just power it on, connect your device, and you’re ready to deliver your digital experience with zero setup hassle.
This series is expertly engineered, fitted with smooth-gliding casters, enabling it to effortlessly
pass through standard doorways and fit
conveniently into elevators, ensuring smooth mobility and easy placement wherever needed. Plus choose the color of your case to batch your brand.
Remote control included to easily adjust the screen height to ensure a clear and seamless viewing experience in any setting.
This display comes pre-loaded with Android 8.0 & Windows 10 operating systems providing you with extreme versatility.
Built-in speakers make it the perfect solution for virtual meetings.
PixelShield true COB technology offering industry-leading impact and scratch resistance to your FLEXUltra fine pixel pitch display modules. PixelShield offers a dramatic decrease in pixel failures over the lifetime of your display.
This version of VisionPRO Go allows up to 9 screens to be viewed simultaneously.
| Series | 108” 2K | 136” 2K | 136” 4K |
| Pitch | 1.25 | 1.56 | 0.78 |
| Pixels/sqm | 640,000 | 409,600 | 1,638,400 |
| LED Type | Flip Chip COB | Flip Chip COB | Flip Chip COB |
| Pixel Matrix | 1920*1080 | 1920*1080 | 3840*2160 |
| Nits | ≤1000nit | ≤1000nit | ≤1000nit |
| Weight (lbs) | 1036 lbs | 1212.5 lbs | 1212.5 lbs |
| Weight (kg) | 470Kg | 550Kg | 550Kg |
| Refresh Rate Hz | 3840Hz | 3840Hz | 3840Hz |
| Max Watts Per Panel | 1460 | 2280 | 3030 |
| Cabinet Width (mm) | 2400 | 3000 | 3000 |
| Cabinet Height(mm) | 1350 | 1687.5 | 1687.5 |
| Cabinet Depth (mm) | 28 | 28 | 28 |
| Cabinet Width(ln) | 94.49 | 118 | 118 |
| Cabinet Height (ln) | 53.15 | 66.44 | 66.44 |
| Cabinet Depth (ln) | 1.1 | 1.1 | 1.1 |
| Cabinet Sq Meter | 3.24m² | 5.0625m² | 5.0625m² |
Experience unmatched visual performance and portability with VisionPRO GO — the ultimate high-definition LED display engineered for effortless deployment across diverse, on-the-go environments.













Would you like more information? We are happy to provide a free quote and consultation for your LED display technology project.
VisionPRO HD is a revolutionary all in one, seamless LED viewing experience for businesses, higher education, hospitals, and more. Get the experience of premium smart TVs, but on a larger scale. Multiple sizing options are available. All options come in Full HD (1920x1080p) resolution. This display can either be wall-mounted or used on a base with wheels. VisionPRO HD is a combination of dynamic picture quality and versatility at an affordable price. VisionPro HD Touch, our touch screen variant includes additional features that make it the most robust LED display for virtual conferencing.
VisionPRO HD is available in the following sizing & pixel pitches: 110″ – 1.2mm, 138″ – 1.5mm, 165″ – 1.9mm, 220″ – 2.5mm
Bold options are available in VisionPRO HD Touch, our touch screen variant.
Resolution is often key in most installs of LED. The VisionPRO HD pitch is one of the highest resolution displays on the market..
Your tiles are calibrated directly out of the box to help decrease failure, and ensure perfect color and brightness of your LED screen.
VisionPRO HD brings the connectivity of smart TVs to a larger more dynamic LED display.
VisionPRO HD comes in four sizes 110″, 138″, 165″, and 220″ all of which are in full HD with a 1920x1080p resolution.
Android-based interface with built-in applications consumers know and love.
Built-in applications including the Google Suite, YouTube, and Chrome internet browser among many others.
The pre-installed interface within VisionPRO HD allows for screen sharing across any WiFi network, compatible with both PC & Mac. Share up to 4 devices at one time wirelessly, or 1 via hard wire HMDI. Pictured above you can see the Single, Dual, and Quad modes of screen sharing.
VisionPRO HD a bezelless, seamless display unlike traditional TV walls.
VisionPRO HD has a naturally reflection-free surface to reduce any room or light interference with the display.
VisionPRO HD offers bright brights and dark darks, taking the depth of black, contrast and quality of images where other technology just cannot compete.
VisionPRO HD comes with a built Android remote with a keyboard. VisionPro also has two USB ports for a wireless keyboard and mouse.
VisionPRO HD displays can be wall mounted.
VisionPRO HD has the option to come with a base and wheels to offer unprecedented portability for a LED screen of this size and quality.
The touch screen allows for the display to be used like a smartphone as well as a whiteboard which can be shared virtually.
This display comes pre-loaded with Android 8.0 & Windows 10 operating systems providing you with extreme versatility.
Built-in speakers make it the perfect solution for virtual meetings.
PixelShield true COB technology offering industry-leading impact and scratch resistance to your FLEXUltra fine pixel pitch display modules. PixelShield offers a dramatic decrease in pixel failures over the lifetime of your display.
This version of VisionPRO HD allows up to 9 screens to be viewed simultaneously.
| Display size | 108 inches | 135 inches | 162 inches |
| Resolution | 1920*1080 | 1920*1080 | 1920*1080 |
| Pitch | 1.2 | 1.5 | 1.8 |
| Pixels/Sq M | 6,40,000 | 4,09,600 | 2,84,444 |
| LED Type | Flip Chip COB | Flip Chip COB | Flip Chip COB |
| Nits | 600 | 600 | 600 |
| Weight (lbs) (Display) | 183.4 | 286.5 | 412.6 |
| Weight (Kg) (Display) | 83.2 | 130 | 187.2 |
| Refresh Rate Hz | 3840Hz | 3840Hz | 3840Hz |
| Viewing Angle (Horizontal) | 160 | 160 | 160 |
| Viewing Angle (Vertical) | 160 | 160 | 160 |
| DisplayWidth (mm) | 2400 | 3000 | 3600 |
| Display Height (mm) | 1350 | 1687.5 | 2025 |
| Watts Per Tile Avg | 3.16 | 2.96 | 2.78 |
| Watts Per Tile Max | 8.6 | 8.35 | 8.1 |
| Watts/m2 Avg | 80-125 | 75-117 | 70-110 |
| Watts/m2 Max | 360 | 350 | 340 |
| Grey Scale | 16 | 16 | 16 |
| Control | Novastar | Novastar | Novastar |
| Scan | 1//60 | 1/54 | 1/45 |
| Contrast | 10000:1 | 10000:1 | 10000:1 |
| Serviceability | Front | Front | Front |
| Operating Temp | |||
| Connectors | |||
| IP Rating | |||
| Certifications | |||
| Display width (in) | 94.49 | 118.1 | 141.73 |
| Display height (in) | 53.14 | 66.4 | 79.7 |
| Display Max Watts | 1166 | 1772 | 2479 |
VisionPro HD is a revolutionary all-in-one, seamless LED viewing experience for businesses, higher education, hospitals, and more. With updated flip chip COB technology, PixelShield and industry-leading contrast ratios combine to create best-in-class visuals and product protection.
Get the experience of premium smart TVs, but on a larger scale that can still be mounted, or mobile on a rolling stand. Multiple sizing options are available.













Would you like more information? We are happy to provide a free quote and consultation for your LED display technology project.

This versatile line of all-in-one LED display solutions, are designed to meet the evolving needs of mobile digital signage. Building on the core simplicity and performance of the original ReFLEXion series, the Plus line introduces distinct models with specialized features to enhance portability and flexibility.
Whether your application requires mobility, adaptability, or ease of use, ReFLEXion Plus delivers purpose-built options to match your signage demands.
Self-contained LED display system with integrated media player and speakers—ready to go right out of the box.
Designed to stand tall with minimal footprint, perfect for retail, event, and information display use.
Delivers vibrant, high-resolution LED performance with excellent visibility even in bright ambient lighting.
Simple deployment with minimal configuration—ideal for fast-paced environments and non-technical users.
Compatible with content control systems for seamless updates across one or multiple units.
Engineered with durable materials for repeated use in high-traffic environments.
Includes HDMI, USB, and network inputs for flexible media sourcing and integration.
| Series | Battery | Battery | Folding | Folding |
| Pixels/Sq M | 284444 | 160,000 | 284,444 | 160,000 |
| LED Type | GOB+SMD | GOB+SMD | GOB+SMD | GOB+SMD |
| Resolution | 320*900 | 240*640 | 320*720 | 240*540 |
| Pitch | 1.875 | 2.5 | 1.875 | 2.5 |
| Nits/ Brightness | ≤700 | ≤700 | ≤700 | ≤700 |
| Weight (lbs) | 143lbs | 143lbs | 77lbs | 77lbs |
| Weight (Kg) | 65kg | 65kg | 35kg | 35kg |
| Refresh Rate Hz | 3840Hz | 3840Hz | 3840Hz | 3840Hz |
| Panel Width (mm) | 600 | 600 | 600 | 600 |
| Panel Height (mm) | 1687.5 | 1687.5 | 1350 | 1350 |
| Panel Depth (mm) | 39 | 39 | 39 | 39 |
| Panel Width (In) | 23.62 | 23.62 | 23.62 | 23.62 |
| Panel Height (In) | 66.43 | 66.43 | 53.15 | 53.15 |
| Panel Depth (In) | 1.53 | 1.53 | 1.53 | 1.53 |
| Panel Sq Meter | 1.0125 | 1.0125 | 0.81 | 0.81 |
| Viewing Angle (Horizontal) | 140 | 140 | 140 | 140 |
| Viewing Angle (Vertical) | 140 | 140 | 140 | 140 |
| Watts Per Tile Avg (per set) | 152 | 121 | ||
| Watts Per Tile Max(per set) | 456 | 364 | ||
| Watts/m2 Avg | 150 | 150 | ||
| Watts/m2 Max | 450 | 450 | ||
| Max Hanging (Tiles) | 1 | 1 | 1 | 1 |
| Grey Scale | 16 bits | 16 bits | 16 bits | 16 bits |
| Control | Colorlight | Colorlight | Colorlight | Colorlight |
| Scan | 1/45 | 1/45 | ||
| Contrast | 5000:1 | 5000:1 | 5000:1 | 5000:1 |
| Serviceability | Front | Front | Front | Front |
| Operating Temp | -20℃~+60℃ | -20℃~+60℃ | -20℃~+60℃ | -20℃~+60℃ |
| IP Rating | IP40 | IP40 | IP40 | IP40 |
| Communication | WiFi、RJ45、5G | WiFi、RJ45、5G | WiFi、RJ45、5G | WiFi、RJ45、5G |
| Display Mode | Synchronous/ Asynchronous | Synchronous/ Asynchronous | Synchronous/ Asynchronous | Synchronous/ Asynchronous |
| Operating System | Windows/Android | Windows/Android | Windows/Android | Windows/Android |
A self-contained, turnkey display perfect for commercial video display that is a dynamic replacement for your traditional pop-up print signage.

Provides digital signage in areas with limited or no power access, enabling untethered operation and maximum placement freedom.
Operate entirely off-grid. Ideal for lobbies, convention centers, pop-ups, or other settings with limited power access.
Onboard indicators keep you informed on battery levels and remaining runtime.
Recharge via standard AC outlet for convenient turnaround between uses.
The foldable model offers a compact design ideal for easy transport, one-person setup, and efficient storage. Whether your application requires mobility, adaptability, or ease of use, ReFLEXion Plus delivers purpose-built options to match your signage demands.
Folds down for easy transport, fitting in smaller vehicles or storage spaces
Intuitively designed for fast, solo assembly
Engineered for reliability, the hinge system is built to withstand frequent set-up and teardown cycles.




Would you like more information? We are happy to provide a free quote and consultation for your LED display technology project.

The ReFLEXion LED stand is a breathtaking, self-contained, turnkey video display perfect for all commercial video display needs. Its sleek and slim design allows for it to be mobile throughout your space to maximize viewer experience. PixelFLEX ReFLEXion is a perfect dynamic replacement for traditional backlit signage for indoor applications.
ReFLEXion displays are available in both 1.8mm and 2.5mm pixel pitch options, and can seamlessly connect multiple units together to form one full, immersive display.
Resolution is often key in most installs of LED. The ReFLEXion pitch is one of the highest resolution displays on the market.
Your ReFLEXion display is calibrated directly out of the box to help decrease failure, and insure perfect color and brightness of your LED screen.
Perfect display to promote your message wherever needed throughout any commercial, hospitality, retail or entertainment environment.
With an integrated media player and local storage your stand can play back any .jpeg, video or visual media. Create a schedule to keep content fresh, up to date, and relevant to your audience.
ReFLEXion displays support WIFI allowing simple operation by Android/iOS or PC.
Easy to operate interface, updated via USB, DVI, or network connections.
In addition, the display comes in two sizing options to maximize your application need for easy video playback.
Single Wide: 576 x 1964 x 38mm/1.8 x 6.4 x .12 ft
Double Wide: 1172 x 1964 x 38mm/3.8 x 6.4 x .12 ft
Knowing that each installation and use is different for a customer, the ReFLEXion display can be easily wall mounted both horizontally and vertically, as well as be a free-standing display with its stand option allowing for unprecedented portability.
Engineered with latest technologies to give it a smoother, slimmer profile. It’s crafted in beautiful anodized lightweight yet durable aluminum, to make the entire product weigh less than 35kg, making it more portable and easier to install.
The stand is fully field serviceable which make service and upkeep to the ReFLEXion stand easier than ever before.
Everyone’s brand is unique and ReFLEXion displays can be customized to keep your brand identity intact. The powder coated frame can be nearly any color you can image to help tie your display into the design of your space.
Update your ReFLEXion content with our built in media player via Wifi or USB. HDMI input and output allows external 3rd party software.
With the ReFLEXion’s on-board media player, content can be sent and displayed wirelessly.
Link up to six ReFLEXions for the 1.8mm, and up to eight for the 2.5mm to create a 1920-pixel-wide display.
Show the content of on one display on other displays simultaneously via HDMI connection between each displays input and output.
Split and show the same piece of content on multiple ReFLExion displays at the same time creating a large surface video display.
| Pixels/Sq M | 6,40,000 | 4,09,600 | 2,84,444 | 2,84,444 (Table Top) | 1,60,000 |
| LED Type | SMD 1010 | SMD 1010 | SMD 1515 | SMD 1515 | SMD 2121 |
| Resolution | 480*1350 | 384*1080 | 320*900 | 320*900 | 240*640 |
| Pitch | 1.25 | 1.56 | 1.875 | 1.875 | 2.5 |
| Pixels/Sq M | 6,40,000 | 4,09,600 | 2,84,444 | 2,84,444 | 1,60,000 |
| Resolution | 480*1350 | 384*1080 | 320*900 | 320*540 | 240*640 |
| Nits/ Brightness | ≦800 nits | ≦800 nits | ≦800 nits | ≦800 nits | ≦800 nits |
| Weight (lbs) | 77.16lbs | 77.16lbs | 77.16lbs | 46.3lbs | 77.16lbs |
| Weight (Kg) | 35kg | 35kg | 35kg | 21kg | 35kg |
| Refresh Rate Hz | 3840Hz | 3840Hz | 3840Hz | 3840Hz | 3840Hz |
| Panel Width (mm) | 600 | 600 | 600 | 600 | 600 |
| Panel Height (mm) | 1687.5 | 1687.5 | 1687.5 | 1012.5 | 1687.5 |
| Panel Depth (mm) | 30 | 30 | 30 | 30 | 30 |
| Panel Width (In) | 23.62 | 23.62 | 23.62 | 23.62 | 23.62 |
| Panel Height (In) | 66.43 | 66.43 | 66.43 | 66.43 | 66.43 |
| Panel Depth (In) | 1.181 | 1.181 | 1.181 | 1.181 | 1.181 |
| Panel Sq Meter | 1.0125 | 1.0125 | 1.0125 | 1.0125 | 1.0125 |
| Viewing Angle (Horizontal) | 140 | 140 | 140 | 140 | 140 |
| Viewing Angle (Vertical) | 140 | 140 | 140 | 140 | 140 |
| Watts Per Tile Avg (per Set) | 240 | 240 | 240 | 240 | 240 |
| Watts Per Tile Max(per Set) | 600 | 600 | 600 | 600 | 600 |
| Watts/m2 Avg | 240 | 240 | 240 | 240 | 240 |
| Watts/m2 Max | 450 | 450 | 450 | 450 | 450 |
| Max Hanging (Tiles) | 1 | 1 | 1 | 1 | 1 |
| Grey Scale | 13-15bits | 13-15bits | 13-15bits | 13-15bits | 13-15bits |
| Control | Novastar/Colorlight | Novastar/Colorlight | Novastar/Colorlight | Novastar/Colorlight | Novastar/Colorlight |
| Scan | 1/27 | 1/27 | 1/30 | 1/30 | 1/30 |
| Contrast | 5000:01:00 | 5000:01:00 | 5000:01:00 | 5000:01:00 | 5000:01:00 |
| Serviceability | Front | Front | Front | Front | Front |
| Operating Temp | -20°C~+60°C | -20°C~+60°C | -20°C~+60°C | -20°C~+60°C | -20°C~+60°C |
| IP Rating | IP54 | IP54 | IP54 | IP54 | IP54 |
| Certifications | CE/FCC/ETL | CE/FCC/ETL | CE/FCC/ETL | CE/FCC/ETL | CE/FCC/ETL |
| Communication | WiFi、RJ45、5G | WiFi、RJ45、5G | WiFi、RJ45、5G | WiFi、RJ45、5G | WiFi、RJ45、5G |
| Display Mode | Synchronous/ Asynchronous | Synchronous/ Asynchronous | Synchronous/ Asynchronous | Synchronous/ Asynchronous | Synchronous/ Asynchronous |
| Operating System | Windows/Android | Windows/Android | Windows/Android | Windows/Android | Windows/Android |
A self-contained, turnkey display perfect for commercial video display that is a dynamic replacement for your traditional pop-up print signage.



Would you like more information? We are happy to provide a free quote and consultation for your LED display technology project.
