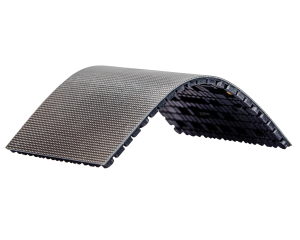

View MoreFLEXMod Adaptive LED Tile allows for more creativity than ever before. Its radical lightweight design eliminates any traditional display screen component: no shader, no perforations, nothing to interfere with the viewing experience. Its lightweight and ability to curve, bend, fold and attach to virtually any metal surface makes it perfect for those installations that call for a non-traditional LED solution. FLEXMod allows for seamless convex or concave LED designs where traditional flat or flexible panels will not work. FLEXMod is an extremely lightweight and high-resolution production like no other.
FLEXMod is available in the following pixel pitches: 1.2 mm, 1.6mm, 1.9mm, 2.5mm, 3mm, and 4mm
Spice up your imaging landscape via seamless convex or concave curved video walls with angles, curves and just about any other creative design.
Creating angles, curves, cylindrical and seamless designs have never been so easy with FLEXMod’s adaptive capabilities.
Single module replacement made easy, improving serviceability in the field.
Magnetic mounts allow for attachment to virtually any metal surface or LED video design.
External sending and receiving control, paired with quality connectors, guarantee safe and reliable connections between each FLEXMod Adaptive LED tile where traditional flat or flexible LED panels are not applicable. Power supplies can be located up to 6.5 feet from the design, keeping construction of the final product slim, lightweight, and compact.
FLEXMod tiles come in standard sizes and can also be customized or mitered to create angled tiles to meet the need of more creative LED video designs.
Smaller modules make creative displays more obtainable.
FLEXMod Tiles can be attached to virtually any surface via magnets. With each project being unique, the FLEXMod specific framing structure is designed and manufactured to accomplish your unique design and deployment.
A wide range of pitch options allows for high resolution video playback as well as creative architectural displays.
| Pitch | 1.25 | 1.25 | 1.25 | 1.25 | 1.25 | 1.25 | 1.25 | 1.5625 | 1.5625 | 1.5625 | 1.5625 | 1.5625 | 1.875 | 1.875 | 1.875 | 1.875 | 1.875 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 3 | 3 | 4 | 4 | 4.0HB | 4.0HB | 4.0HB | 4.0HB |
| Pixels/Sq M | 6,40,000 | 6,40,000 | 6,40,000 | 6,40,000 | 6,40,000 | 6,40,000 | 6,40,000 | 4,09,600 | 4,09,600 | 4,09,600 | 3,60,000 | 3,60,000 | 2,84,444 | 2,84,444 | 2,84,444 | 2,84,444 | 2,84,444 | 160000 | 160000 | 160000 | 160000 | 160000 | 160000 | 160000 | 160000 | 160000 | 160000 | 1,11,111 | 1,11,111 | 62,500 | 62,500 | 62,500 | 62,500 | 62,500 | 62,500 |
| LED Type | SMD 1010 copper wire | SMD 1010 goldwire | SMD 1010 copper wire | SMD 1010 goldwire | SMD 1010 copper wire | SMD 1010 goldwire | Flip Chip 1010 | SMD 1010 copper wire | SMD 1010 goldwire | Flip Chip 1010 | SMD 1010 copper wire | SMD 1010 goldwire | SMD 1010 copper wire | SMD 1010 goldwire | SMD 1010 copper wire | SMD 1010 goldwire | Flip Chip 1010 | SMD 1515 copper wire | SMD 1515 gold wire | SMD 1515 copper wire | SMD 1515 gold wire | SMD 1515 copper wire | SMD 1515 gold wire | SMD 1515 copper wire | SMD 1515 gold wire | SMD 1515 copper wire | SMD 1515 gold wire | SMD 2121 copper wire | SMD 2121 Gold Wire | SMD 2121 copper wire | SMD 2121 gold wire | SMD 1921 Copper (white LED) | SMD 1921 Gold (white LED) | RS1921 Copper (black LED) | RS1921 Gold (black LED) |
| Pixel Matrix (Module) | 192*96 | 192*96 | 144*96 | 144*96 | 240*135 | 240*135 | 240*135 | 192*108 | 192*108 | 192*108 | 144*96 | 144*96 | 144*64 | 144*64 | 160*90 | 160*90 | 160*90 | 120×68 | 120×68 | 96*64 | 96*64 | 48*64 | 48*64 | 128*64 | 128*64 | 120*120 | 120*120 | 80*40 | 80*40 | 60*30 | 60*30 | 60*30 | 60*30 | 60*30 | 60*30 |
| Nits | >600cd/m2 | >600cd/m2 | >600cd/m2 | >600cd/m2 | >600cd/m2 | >600cd/m2 | >1000cd/m2 | >650cd/m2 | >650cd/m2 | >1000cd/m2 | >600cd/m2 | >600cd/m2 | >600cd/m2 | >600cd/m2 | >600cd/m2 | >600cd/m2 | >1000cd/m2 | >800 | >800 | >800cd/m2 | >800 | >800cd/m2 | >800 | >800cd/m2 | >800cd/m2 | >800cd/m2 | >800cd/m2 | >800cd/m2 | >800 | >800cd/m2 | >800cd/m2 | >5000 | >5000 | >3500 | >3500 |
| Weight (lbs) | 1 | 1 | 0.379 | 0.379 | 0.79 | 0.79 | 0.873 | 0.807 | 0.807 | 0.492 | 0.375 | 0.756 | 0.756 | 0.71 | 0.556 | 0.287 | 0.86 | 1.59 | 0.364 | 0.353 | 0.353 | 0.5 | |||||||||||||
| Weight (Kg) | 0.229 | 0.229 | 0.172 | 0.172 | 0.36 | 0.36 | 0.396 | 0.366 | 0.366 | 0.223 | 0.17 | 0.343 | 0.343 | 0.323 | 0.252 | 0.13 | 0.39 | 0.72 | 0.165 | 0.16 | 0.16 | 0.229 | 0.229 | ||||||||||||
| Refresh Rate Hz | 3840hz | 3840hz | 3840hz | 3840hz | 3840hz | 3840hz | 3840hz | 3840hz | 3840hz | 3840hz | 3840hz | 3840hz | 3840hz | 3840hz | 3840hz | 3840hz | 3840hz | 3840hz | 3840hz | 3840hz | 3840hz | 3840hz | 3840hz | 3840hz | 3840hz | 3840hz | 3840hz | 3840hz | 3840hz | 3840hz | 3840hz | >1000Hz | >1000Hz | >1000Hz | >1000Hz |
| Module Width (mm) | 240 | 240 | 180 | 180 | 300 | 300 | 300 | 300 | 300 | 240 | 240 | 270 | 270 | 300 | 300 | 300 | 300 | 240 | 240 | 120 | 120 | 320 | 320 | 304 | 304 | 240 | 240 | ||||||||
| Module Height (mm) | 120 | 120 | 120 | 120 | 168.75 | 168.75 | 168.75 | 168.75 | 168.75 | 168.75 | 160 | 160 | 120 | 120 | 168.75 | 168.75 | 168.75 | 168.75 | 168.75 | 160 | 160 | 160 | 160 | 160 | 160 | 304 | 304 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 |
| Module Depth (mm) | 6 | 6 | 6.25 | 6.25 | 6.25 | 6.25 | 6.25 | 6.25 | 6.25 | 6.25 | 6.05 | 6.05 | 6.05 | 6.05 | 6.05 | 6.05 | 6.05 | 6.05 | 6.05 | 6.4 | 6.4 | 6.4 | 6.4 | 6.4 | 6.4 | 6.4 | 6.4 | 6.6 | 6.6 | 6.6 | 6.6 | 6.6 | 6.6 | 6.6 | 6.6 |
| Module Width (In) | 9 | 9 | 7.09 | 7.09 | 11.81 | 11.81 | 11.81 | 11.81 | 11.81 | 11.81 | 9.45 | 9.45 | 10.63 | 10.63 | 11.81 | 11.81 | 11.81 | 11.81 | 11.81 | 9.45 | 9.45 | 4.72 | 4.72 | 12.5984 | 12.5984 | 11.9685 | 11.9685 | 9.45 | 9.45 | 9.45 | 9.45 | 9.45 | 9.45 | 9.45 | 9.45 |
| ModuleHeight (In) | 5 | 5 | 4.72 | 4.72 | 6.64 | 6.64 | 6.64 | 6.64 | 6.64 | 6.64 | 6.3 | 6.3 | 4.72 | 4.72 | 6.64 | 6.64 | 6.64 | 6.64 | 6.64 | 6.3 | 6.3 | 6.3 | 6.3 | 6.29921 | 6.29921 | 11.9685 | 11.9685 | 4.72 | 4.72 | 4.72 | 4.72 | 4.72 | 4.72 | 4.72 | 4.72 |
| Module Depth (In) | 0.25 | 0.25 | 0.25 | 0.25 | 0.25 | 0.25 | 0.25 | 0.25 | 0.25 | 0.25 | 0.24 | 0.24 | 0.24 | 0.24 | 0.24 | 0.24 | 0.24 | 0.24 | 0.24 | 0.25 | 0.25 | 0.25 | 0.25 | 0.251969 | 0.251969 | 0.251969 | 0.251969 | 0.26 | 0.26 | 0.26 | 0.26 | 0.26 | 0.26 | 0.26 | 0.26 |
| Module Sq Meter | 0.0288 | 0.0288 | 0.0288 | 0.0288 | 0.050625 | 0.050625 | 0.05 | 0.05 | 0.05 | 0.05 | 0.0384 | 0.0384 | 0.0324 | 0.0324 | 0.05 | 0.05 | 0.05 | 0.050625 | 0.050625 | 0.0384 | 0.0384 | 0.0192 | 0.0192 | 0.0512 | 0.0512 | 0.09242 | 0.09242 | 0.0288 | 0.0288 | 0.0288 | 0.0288 | 0.0288 | 0.0288 | 0 | 0 |
| The Min Diameter | 1222.3mm | 1222.3mm | 1222.3mm | 1222.3mm | 1336.9mm | 1336.9mm | 1336.9 | 1336.9mm | 1336.9mm | 1336.9mm | 763.9mm | 763.9mm | 773.5mm | 773.5mm | 859.4mm | 859.4mm | 859.4mm | 764mm | 764mm | 763.9mm | 763.9mm | 763.9mm | 763.9mm | 763.9mm | 763.9mm | 763.9mm | 763.9mm | 763.9mm | 763.9mm | 763.9mm | 763.9mm | 763.9mm | 763.9mm | 763.9mm | 763.9mm |
| Viewing Angle (Horizontal) | >120 | >120 | >120 | >120 | >120 | >120 | >120 | >120 | >120 | >120 | >120 | >120 | >120 | >120 | >120 | >120 | >120 | >120 | >120 | >120 | >120 | >120 | >120 | >120 | >120 | >120 | >120 | >120 | >120 | >120 | >120 | >120 | |||
| Viewing Angle (Vertical) | >120 | >120 | >120 | >120 | >120 | >120 | >120 | 140 | 140 | 140 | 140 | 140 | 140 | 140 | 140 | 140 | 140 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 |
| Watts Per Tile Avg | 5.3 | 5.3 | 4 | 4 | 9.79 | 9.79 | 9.79 | 8.44 | 8.44 | 9.79 | 5 | 5 | 6 | 6 | 8.44 | 8.44 | 9.79 | 7.43 | 7.43 | 5.6 | 5.6 | 2.82 | 2.82 | 7.51 | 7.51 | 13.55 | 13.55 | 3.74 | 3.74 | 3.36 | 6.43 | 6.43 | |||
| Watts Per Tile Max | 15.8 | 15.8 | 11.88 | 11.88 | 29.3 | 29.3 | 29.3 | 25.3 | 25.3 | 29.3 | 15.3 | 15.3 | 17.8 | 17.8 | 25.3 | 25.3 | 29.3 | 22.3 | 22.3 | 17 | 17 | 8.5 | 8.5 | 22.53 | 22.53 | 40.7 | 40.7 | 11.2 | 11.2 | 10 | 19.3 | 19.3 | |||
| Watts/m2 Avg | 185 | 185 | 185 | 185 | 195 | 170 | 170 | 195 | 135 | 135 | 185 | 185 | 170 | 170 | 195 | 150 | 150 | 150 | 150 | 147 | 147 | 147 | 147 | 130 | 130 | 120 | 120 | 230 | 230 | ||||||
| Watts/m2 Max | 550 | 550 | 550 | 550 | 580 | 580 | 580 | 500W | 500W | 580W | 400 | 400 | 550 | 550 | 500 | 500 | 580 | 440 | 440 | 440W | 440W | 440W | 440W | 440W | 440W | 440W | 440W | 390W | 390W | 350W | 350W | 670 | 670 | ||
| Max Hanging (Tiles) | no hanging | no hanging | no hanging | no hanging | no hanging | no hanging | no hanging | no hanging | no hanging | no hanging | no hanging | no hanging | no hanging | no hanging | no hanging | no hanging | no hanging | no hanging | no hanging | no hanging | no hanging | no hanging | no hanging | no hanging | no hanging | no hanging | no hanging | no hanging | no hanging | no hanging | no hanging | no hanging | no hanging | ||
| Grey Scale | 12-16bits | 12-16bits | 12-16bits | 12-16bits | 13-15bits | 13-15bits | 12-16bits | 12-16bits | 12-16bits | 12-16bits | 12-16bits | 12-16bits | 12-16bits | 12-16bits | 12-16bits | 12-16bits | 12-16bits | 12-16bits | 12-16bits | 12-16bits | 12-16bits | 12-16bits | 12-16bits | 12-16bits | 12-16bits | 12-16bits | 12-16bits | 12-16bits | 12-16bits | 12-16bits | 12-16bits | 13-15bits | 13-15bits | ||
| Control | NOVA/Colorlight | NOVA/Colorlight | NOVA/Colorlight | NOVA/Colorlight | NOVA/Colorlight | NOVA/Colorlight | NOVA/Colorlight | NOVA/Colorlight | NOVA/Colorlight | NOVA/Colorlight | NOVA/Colorlight | NOVA/Colorlight | NOVA/Colorlight | NOVA/Colorlight | NOVA/Colorlight | NOVA/Colorlight | NOVA/Colorlight | NOVA/Colorlight | NOVA/Colorlight | NOVA/Colorlight | NOVA/Colorlight | NOVA/Colorlight | NOVA/Colorlight | NOVA/Colorlight | NOVA/Colorlight | NOVA/Colorlight | NOVA/Colorlight | NOVA/Colorlight | NOVA/Colorlight | NOVA/Colorlight | NOVA/Colorlight | NOVA/Colorlight | NOVA/Colorlight | ||
| Scan | 1/48 | 1/48 | 1/48 | 1/48 | 1/48 | 1/48 | 1-27 | 1/27 | 1/27 | 1-27 | 1/32 | 1/32 | 1/32 | 1/32 | 1-30 | 1-30 | 1-30 | 1/17 | 1/17 | 1/32 | 1/32 | Jan-32 | Jan-32 | 1/32 | 1/32 | 1/30 | 1/30 | 0.05 | 0.05 | 44941 | 44941 | 1-15 | 1-15 | ||
| Contrast | 5000:1 | 5000:1 | 5000:1 | 5000:1 | 2000:01:00 | 2000:01:00 | 10000:1 | 5000:1 | 5000:1 | 10000:1 | 5000:1 | 5000:1 | 5000:1 | 5000:1 | 5000:1 | 5000:1 | 10000:1 | 2000:1 | 2000:1 | 5000:1 | 5000:1 | 5000:1 | 5000:1 | 5000:1 | 5000:1 | 5000:1 | 5000:1 | 5000:1 | 5000:1 | 5000:1 | 5000:1 | ||||
| Serviceability | front | front | front | front | front | front | front | front | front | front | front | front | front | front | front | front | front | front | front | front | front | front | front | front | front | front | front | front | front | front | front | front | front | front | front |
| Operating Temp | 0″C~+40°C | 0″C~+40°C | 0″C~+40°C | 0″C~+40°C | 0″C~+40°C | 0″C~+40°C | 0″C~+40°C | 0″C~+40°C | 0″C~+40°C | 0″C~+40°C | 120 | 120 | 0″C~+40°C | 0″C~+40°C | 0″C~+40°C | 0″C~+40°C | 0″C~+40°C | 0″C~+40°C | 0″C~+40°C | 0″C~+40°C | 0″C~+40°C | 0″C~+40°C | 0″C~+40°C | 0″C~+40°C | 0″C~+40°C | 0″C~+40°C | 0″C~+40°C | 0″C~+40°C | 0″C~+40°C | 0″C~+40°C | 0″C~+40°C | 0″C~+40°C | 0″C~+40°C | 0″C~+40°C | 0″C~+40°C |
| IP Rating | IP40 | IP40 | IP40 | IP40 | IP40 | IP40 | IP40 | IP40 | IP40 | IP40 | IP40 | IP40 | IP40 | IP40 | IP40 | IP40 | IP40 | IP40 | IP40 | IP40 | IP40 | IP40 | IP40 | IP40 | IP40 | IP40 | IP40 | IP40 | IP40 | IP40 | IP40 | IP40 | IP40 | IP40 | IP40 |
| Certifications | no | no | no | no | no | no | no | no | no | no | no | no | no | no | no | no | no | no | no | no | no | no | no | no | no | no | no | no | no | no | no | no | no | no | no |
FLEXMod is not just customizable—it’s configurable. Its lightweight, yet durable design makes it flexible, personalized—and, in short—one of a kind.













Would you like more information? We are happy to provide a free quote and consultation for your LED display technology project.

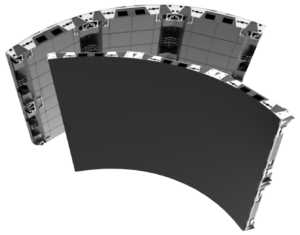

FLEXMod PRO is one step up in this versatile, flexible, and lightweight FLEXMod product series. Utilizing flip chip and PixelShield, along with larger module sizes, combine to provide the most cutting edge and high-performance, flexible module on the market.
The FLEXMod Pro series can curve, bend, and attach to virtually any metal surface, making it the perfect choice for installations calling for a custom flat-to-curved solution.
FLEXMod Pro is a great option for LED display projects that require curved and flat panels in the same solution. FLEXMod Pro panels are capable of flexing and bending to any vision, but also have the ability integrate seamlessly with a flat cabinet. This versatility provides the uniqueness, flexibility and customization at a reasonable budget.
FLEXMod Pro 600×337.5mm tiles can be curved to custom curvatures to meet your project needs, with some limitations to the diameter of the curve.
PixelShield is a protective coating that can be integrated into FLEXMod panels. This add-on safeguards against external damage while allowing the tiles to bend and curve without sacrificing pixels. No need to worry about bumping into your display, our pixels are built to last.
| Pitch | 0.9375 | 0.9375 | 0.9375 | 1.25 | 1.25 | 1.5625 | 1.5625 | 1.875 | 1.875 | 2.5 | 2.5 | 3.75 | 3.75 | |
| Pixels/Sq M | 1137778 | 11,37,778 | 11,37,778 | 6,40,000 | 6,40,000 | 4,09,600 | 4,09,600 | 2,84,444 | 2,84,444 | 1,60,000 | 1,60,000 | 71,111 | 71,111 | |
| LED Type | FC 4in 1 | Flip Chip | 4-in-1 Copper | SMD1010 Gold | SMD1010 Copper | SMD1010 Gold | SMD1010 Copper | SMD1515 Gold | SMD1515 Copper | SMD2121 Gold | SMD2121 Copper | SMD2121 Gold | SMD2121 Copper | |
| Pixel Matrix (Panel) | 320*720 | 320*720 | 320*720 | 240*540 | 240*540 | 192*432 | 192*432 | 160*360 | 160*360 | 120*270 | 120*270 | 80*180 | 80*180 | |
| Nits | 600 | 600 | 600 | 1000 | 1000 | 1000 | 1000 | 1200 | 1200 | 1200 | 1200 | 1200 | 1200 | |
| Weight (lbs) | 11.24lbs/panel | 11.24lbs/panel | 11.24lbs/panel | 11.24lbs/panel | 11.24lbs/panel | 11.24lbs/panel | 11.24lbs/panel | 11.24lbs/panel | 11.24lbs/panel | 11.24lbs/panel | 11.24lbs/panel | 11.24lbs/panel | ||
| Weight (Kg) | 5.1kg/ panel | 5.1kg/ panel | 5.1kg/ panel | 5.1kg/ panel | 5.1kg/ panel | 5.1kg/ panel | 5.1kg/ panel | 5.1kg/ panel | 5.1kg/ panel | 5.1kg/ panel | 5.1kg/ panel | 5.1kg/ panel | ||
| Refresh Rate Hz | 3840HZ | 3840HZ | 3840HZ | 3840HZ | 3840HZ | 3840HZ | 3840HZ | 3840HZ | 3840HZ | 3840HZ | 3840HZ | 3840HZ | ||
| Panel Width (mm) | 300 | 300 | 300 | 300 | 300 | 300 | 300 | 300 | 300 | 300 | 300 | 300 | 300 | |
| Panel Height (mm) | 675 | 675 | 675 | 675 | 675 | 675 | 675 | 675 | 675 | 675 | 675 | 675 | 675 | |
| Panel Depth (mm) | 38 | 38 | 38 | 38 | 38 | 38 | 38 | 38 | 38 | 38 | 38 | 38 | 38 | |
| Panel Width (In) | 11.81 | 11.81 | 11.81 | 11.81 | 11.81 | 11.81 | 11.81 | 11.81 | 11.81 | 11.81 | 11.81 | 11.81 | 11.81 | |
| Panel Height (In) | 26.57 | 26.57 | 26.57 | 26.57 | 26.57 | 26.57 | 26.57 | 26.57 | 26.57 | 26.57 | 26.57 | 26.57 | 26.57 | |
| Panel Depth (In) | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | |
| Panel Sq Meter | ||||||||||||||
| Viewing Angle (Horizontal) | 160° | 160° | 160° | 160° | 160° | 160° | 140° | 140° | 140° | 140° | 140° | 140° | ||
| Viewing Angle (Vertical) | 160° | 160° | 160° | 160° | 160° | 160° | 140° | 140° | 140° | 140° | 140° | 140° | ||
| Watts Per Tile Avg | 47.25 | 47.25 | 47.25 | 51 | 51 | 51 | 51 | 49 | 49 | 45 | 45 | 45 | 45 | |
| Watts Per Tile Max | 141.75 | 141.75 | 141.75 | 152 | 152 | 152 | 152 | 146 | 146 | 134 | 134 | 134 | 134 | |
| Watts/m2 Avg | ≤230W/ m² | ≤230W/ m² | ≤230W/ m² | ≤250W/ m² | ≤250W/ m² | ≤250W/ m² | ≤250W/ m² | ≤240W/ m² | ≤240W/ m² | ≤220W/ m² | ≤220W/ m² | ≤220W/ m² | ≤220W/ m² | |
| Watts/m2 Max | ≤700W/ m² | ≤700W/ m² | ≤700W/ m² | ≤750W/ m² | ≤750W/ m² | ≤750W/ m² | ≤750W/ m² | ≤720W/ m² | ≤720W/ m² | ≤660W/ m² | ≤660W/ m² | ≤660W/ m² | ≤660W/ m² | |
| Grey Scale | 13-16 | 13-16 | 13-16 | 13-16 | 13-16 | 13-16 | 13-16 | 13-16 | 13-16 | 13-16 | 13-16 | 13-16 | 13-16 | |
| Control | Novastar/ Colorlight | Novastar/ Colorlight | Novastar/ Colorlight | Novastar/ Colorlight | Novastar/ Colorlight | Novastar/ Colorlight | Novastar/ Colorlight | Novastar/ Colorlight | Novastar/ Colorlight | Novastar/ Colorlight | Novastar/ Colorlight | Novastar/ Colorlight | Novastar/ Colorlight | |
| Scan | 1/36 | 1/60 | 1/60 | 1/30 | 1/30 | 1/27 | 1/27 | 1/30 | 1/30 | 1/27 | 1/27 | 1/15 | 1/15 | |
| Contrast | 5000:01:00 | 5000:01:00 | 5000:01:00 | 5000:01:00 | 5000:01:00 | 5000:01:00 | 5000:01:00 | 5000:01:00 | 5000:01:00 | 5000:01:00 | 5000:01:00 | 5000:01:00 | 5000:01:00 | |
| Serviceability | Front | Front | Front | Front | Front | Front | Front | Front | Front | Front | Front | Front | Front | |
| Operating Temp | -20℃~60℃ | -20℃~60℃ | -20℃~60℃ | -20℃~60℃ | -20℃~60℃ | -20℃~60℃ | -20℃~60℃ | -20℃~60℃ | -20℃~60℃ | -20℃~60℃ | -20℃~60℃ | -20℃~60℃ | -20℃~60℃ | |
| Connectors | pin to pin | pin to pin | pin to pin | pin to pin | pin to pin | pin to pin | pin to pin | pin to pin | pin to pin | pin to pin | pin to pin | pin to pin | pin to pin | |
| IP Rating | IP 40 | IP 40 | IP 40 | IP 40 | IP 40 | IP 40 | IP 40 | IP 40 | IP 40 | IP 40 | IP 40 | IP 40 | IP 40 | |
| Certifications | CE/FCC/ETL | CE/FCC/ETL | CE/FCC/ETL | CE/FCC/ETL | CE/FCC/ETL | CE/FCC/ETL | CE/FCC/ETL | CE/FCC/ETL | CE/FCC/ETL | CE/FCC/ETL | CE/FCC/ETL | CE/FCC/ETL | CE/FCC/ETL |
The FLEXMod Pro series can curve, bend, and attach to virtually any metal surface, making it the perfect choice for installations calling for a non-traditional LED solution.


Would you like more information? We are happy to provide a free quote and consultation for your LED display technology project.
This professional curvable LED screen is built for broadcast and stage productions. It features a multi-functional handle, supports multi-angle creative installations, and offers a high-contrast ratio.
The screen supports rear maintenance and reduces more effects during camera shooting.
This LED panel supports up to a 45-degree curve to enhance portability and flexibility, making it ideal for dynamic production setups, creative arrangements, and efficient storage.
With advanced curving capabilities, only eight cabinets are needed to form a column with a minimum diameter of 1.2 meters.
The EFp Curve is compatible with both EFp and FLEXTour standard panels, allowing seamless connections for increased versatility and affordability. Enhance your display configurations with this flexible solution for a cost-effective, dynamic visual experience.
With a high contrast ratio of 10,000:1 and a refresh rate of up to 7,680Hz, this LED panel delivers stunning clarity and smooth visuals, ensuring exceptional image quality for dynamic production environments without frustrating color patterns and interference.
| Pitch | 3.9 | 2.6 | 2.6 | 1.95 | 1.95 |
| Pixels/Sq M | 65536 | 147456 | 147456 | 262144 | 262144 |
| LED Type | SMD2121 | Mini 4 in 1 | Mini 4 in 1 | Mini 4 in 1 | Mini 4 in 1 |
| Pixel Matrix (Panel) | 128*128 | 192*192 | 192*192 | 256*256 | 256*256 |
| Nits | 1000nits | 1300nits | 1300nits | 1300nits | 1300nits |
| Weight (lbs) | 17.16 | 17.16 | 17.16 | 17.16 | 17.16 |
| Weight (Kg) | 7.8 | 7.8 | 7.8 | 7.8 | 7.8 |
| Refresh Rate Hz | 3840Hz | 3840Hz | 7680Hz | 3840Hz | 3840Hz |
| Panel Width (mm) | 500 | 500 | 500 | 500 | 500 |
| Panel Height (mm) | 500 | 500 | 500 | 500 | 500 |
| Panel Depth (mm) | 80 | 80 | 80 | 80 | 80 |
| Panel Width (In) | 19.68 | 19.68 | 19.68 | 19.68 | 19.68 |
| Panel Height (In) | 19.68 | 19.68 | 19.68 | 19.68 | 19.68 |
| Panel Depth (In) | 3.15 | 3.15 | 3.15 | 3.15 | 3.15 |
| Panel Sq Meter | 4 | 4 | 4 | 4 | 4 |
| Viewing Angle (Horizontal) | 160 | 160 | 160 | 160 | 160 |
| Viewing Angle (Vertical) | 140 | 140 | 140 | 140 | 140 |
| Watts Per Tile Avg | 35W | 45W | 45W | 45W | 45W |
| Watts Per Tile Max | 110W | 135W | 135W | 135W | 135W |
| Watts/m2 Avg | 140W | 160W | 160W | 160W | 160W |
| Watts/m2 Max | 440W | 540W | 540W | 540W | 540W |
| Max Hanging (Tiles) | 20 | 20 | 20 | 20 | 20 |
| Grey Scale | 14bit | 14bit | 14bit | 14bit | 14bit |
| Control | Novastar/ Colorlight | Novastar/ Colorlight | Novastar/ Colorlight | Novastar/ Colorlight | Novastar/ Colorlight |
| Scan | 1/16 | 1/16 | 1/16 | 1/32 | 1/16 |
| Contrast | 8000:1 | 8000:1 | 8000:1 | 8000:1 | 8000:1 |
| Serviceability | Rear | Rear | Rear | Rear | Rear |
| Operating Temp | -20~ +40 | -20~ +40 | -20~ +40 | -20~ +40 | -20~ +40 |
| Connectors | Seetronic | Seetronic | Seetronic | Seetronic | Seetronic |
| IP Rating | IP20 | IP20 | IP20 | IP20 | IP20 |
| Certifications | ETL, FCC | ETL, FCC | ETL, FCC | ETL, FCC | ETL, FCC |
This professional curvable LED screen is built for broadcast and stage productions. It features a multi-functional handle, supports multi-angle creative installations, and offers a high-contrast ratio. The screen supports rear maintenance and reduces moire effects during camera shooting.













Would you like more information? We are happy to provide a free quote and consultation for your LED display technology project.

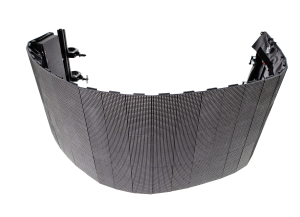

FLEXCurtain is a flexible LED wall similar to the traditional LED panels that you see at concerts and events. The PixelFLEX LED Curtain, however, offers a variety of advantages over the competition. Where the competition’s LED panels are heavy, PixelFLEX LED curtains are ultralight — LED Walls from PixelFLEX weigh 60-90% less than other large LED screen options.
FLEXCurtain is available in the following pixel pitches: 18.25mm, 20mm, 25mm, 30mm, 37.5mm, 50mm, 75mm, 100mm
FLEXCurtain offers pixel pitches ranging from 18.75mm to 100mm.
PixelFLEX LED systems have full refresh rates and color temperature adjustments which make them perfect for television.
FLEXCurtain is 60%-90% lighter than the competition.
FLEXCurtain is extremely durable and is designed for life on the road.
We offer a wide range of sizes to meet your display needs.
Four FLEXCurtain LED displays fold and pack into a single road case.
500 square feet of PixelFLEX FLEXCurtain can be setup and broken down in under 15 minutes by using our easy quick-lock system.
FLEXCurtain screens support any DVI-D source for sending photos or videos.
25’x50′ of LED screens easily packs into only 5 feet of trailer space.
| Series | L-2.8 | L-2.8 | L-2.8 | L-3.7 | L-3.7 | L-4.6 | L-4.6 | LO-3.7 | LO-3.7 | LO-3.7 | LO-3.7 | LO-4.6 | LO-4.6 | LO-4.6 | LO-4.6 | ||||||||||
| Pitch | 2.8mm | 2.8mm | 2.8mm | 3.75mm | 3.75mm | 4.68mm | 4.68mm | 3.75mm | 3.75mm | 3.75mm | 3.75mm | 4.68mm | 4.68mm | 4.68mm | 4.68mm | 3.9mm | 4.68mm | 6.25mm HALF | 6.25mm FULL | 7.8mm HALF | 7.8mm FULL | 9.375mm HALF | 9.375mm FULL | 12.5mm HALF | 12.5mm FULL |
| Pixels/Sq M | 120178 | 120178 | 120178 | 71112 | 71112 | 45512 | 45512 | 71112 | 71112 | 71112 | 71112 | 45512 | 45512 | 45512 | 45512 | 65536 | 45512 | 25600 | 25600 | 16384 | 16384 | 11378 | 11378 | 6400 | 6400 |
| LED Type | SMD1515 | SMD1515 | SMD1515 | SMD2020 | SMD2020 | SMD2020 | SMD2020 | SMD1921 | SMD1921 | SMD1921 | SMD1921 | SMD1921 | SMD1921 | SMD1921 | SMD1921 | SMD2020 | SMD2020 | SMD2727 | SMD2727 | SMD2727 | SMD2727 | SMD2727 | SMD2727 | SMD2727 | SMD2727 |
| Pixel Matrix (Panel) | 208×416 | 208×416 | 208×416 | 160×320 | 160×320 | 128×256 | 128×256 | 160×320 | 160×320 | 160×320 | 160×320 | 128×256 | 128×256 | 128×256 | 128×256 | 128×384 | 128×256 | 96×192 | 96×348 | 64×160 | 64X320 | 64×128 | 64×256 | 48×96 | 48×192 |
| Nits | 1000nits | 3500nits | 1000nits | 1000nits | 1000nits | 1000nits | 1000nits | 5000nits | 3000nits | 4000nits | 4000nits | 5000nits | 3000nits | 4000nits | 4000nits | 1000nits | 1000nits | 2000nits | 2000nits | 2000nits | 2000nits | 1500nits | 1500nits | 1500nits | 1500nits |
| Weight (lbs) | 35 lbs | 35 lbs | 35 lbs | 35 lbs | 35 lbs | 35 lbs | 35 lbs | 37.5lbs | 37.5lbs | 37.5lbs | 37.5lbs | 37.5lbs | 37.5lbs | 37.5lbs | 37.5lbs | 33lbs | 40lbs | 31lbs | 62lbs | 26lbs | 52lbs | 24.2lbs | 48.4lbs | 24.2lbs | 48.4lbs |
| Weight (Kg) | 16kg | 16kg | 16kg | 16kg | 16kg | 16kg | 16kg | 17kg | 17kg | 17kg | 17kg | 17kg | 17kg | 17kg | 17kg | 14.9kg | 18kg | 14kg | 28 kg | 12kg | 24kg | 11kg | 22kg | 11kg | 22kg |
| Refresh Rate Hz | 3840Hz | 3840Hz | 3840Hz | 3840Hz | 3840Hz | 3840Hz | 3840Hz | 3840Hz | 3840Hz | 3840Hz | 3840Hz | 3840Hz | 3840Hz | 3840Hz | 3840Hz | 3840HZ | 3840HZ | 3840HZ | 3840HZ | 3840HZ | 3840HZ | 3840HZ | 3840HZ | 3840HZ | 3840HZ |
| Panel Width (mm) | 600 | 600 | 600 | 600 | 600 | 600 | 600 | 600 | 600 | 600 | 600 | 600 | 600 | 600 | 600 | 500 | 600 | 600 | 600 | 500 | 500 | 600 | 600 | 600 | 600 |
| Panel Height (mm) | 1200 | 1200 | 1200 | 1200 | 1200 | 1200 | 1200 | 1200 | 1200 | 1200 | 1200 | 1200 | 1200 | 1200 | 1200 | 1500 | 1200 | 1200 | 2400 | 1250 | 2500 | 1200 | 2400 | 1200 | 2400 |
| Panel Depth (mm) | 89mm | 89mm | 89mm | 89mm | 89mm | 89mm | 89mm | 89mm | 89mm | 89mm | 89mm | 89mm | 89mm | 89mm | 89mm | 12mm | 12mm | 12mm | 12mm | 12mm | 12mm | 12mm | 12mm | 12mm | 12mm |
| Panel Width (In) | 23.62in | 23.62in | 23.62in | 23.62in | 23.62in | 23.62in | 23.62in | 23.62in | 23.62in | 23.62in | 23.62in | 23.62in | 23.62in | 23.62in | 23.62in | 19.68in | 23.62in | 23.62in | 23.62in | 19.68in | 19.68in | 23.62in | 23.62in | 23.62in | 23.62in |
| Panel Height (In) | 47.24in | 47.24in | 47.24in | 47.24in | 47.24in | 47.24in | 47.24in | 47.24in | 47.24in | 47.24in | 47.24in | 47.24in | 47.24in | 47.24in | 47.24in | 59.05in | 47.24in | 47.24in | 94.48 in | 49.21in | 98.42in | 47.24in | 94.48in | 47.24in | 94.48in |
| Panel Depth (In) | 3.5in | 3.5in | 3.5in | 3.5in | 3.5in | 3.5in | 3.5in | 3.5in | 3.5in | 3.5in | 3.5in | 3.5in | 3.5in | 3.5in | 3.5in | 0.47in | 0.47in | 0.47in | 0.47in | 0.47in | 0.47in | 0.47in | 0.47in | 0.47in | 0.47in |
| Panel Sq Meter | 0.72sq.m | 0.72sq.m | 0.72sq.m | 0.72sq.m | 0.72sq.m | 0.72sq.m | 0.72sq.m | 0.72sq.m | 0.72sq.m | 0.72sq.m | 0.72sq.m | 0.72sq.m | 0.72sq.m | 0.72sq.m | 0.72sq.m | 0.75sq.m | 0.72sq.m | Half 0.72sq.m | 1.44 sq. m | Half 0.625sq.m | 1.25sq.m | Half 0.72sq.m | 1.44sq.m | 0.72 sq.m. | Full 1.44sq.m |
| The Min Diameter | 1500mm | 1500mm | 1500mm | 1500mm | 1500mm | 1500mm | 1500mm | 1500mm | 1500mm | 1500mm | 1500mm | 1500mm | 1500mm | 1500mm | 1500mm | ||||||||||
| Viewing Angle (Horizontal) | 120 degree | 120 degree | 120 degree | 120 degree | 120 degree | 120 degree | 120 degree | 120 degree | 120 degree | 120 degree | 120 degree | 120 degree | 120 degree | 120 degree | 120 degree | 120degree | 120degree | 120degree | 120degree | 120degree | 120degree | 120degree | 120degree | 120degree | 120degree |
| Viewing Angle (Vertical) | 120 degree | 120 degree | 120 degree | 120 degree | 120 degree | 120 degree | 120 degree | 120 degree | 120 degree | 120 degree | 120 degree | 120 degree | 120 degree | 120 degree | 120 degree | 120degree | 120degree | 120degree | 120degree | 120degree | 120degree | 120degree | 120degree | 120degree | 120degree |
| Watts Per Tile Avg | 150W | 150W | 150W | 150W | 150W | 150W | 150W | 150W | 150W | 150W | 150W | 150W | 150W | 150W | 150W | 120W | 120W | Half 95W | 190w | Half 80W | 160W | Half 70W | 140W | 70W | Full 140W |
| Watts Per Tile Max | 450 | 450 | 450 | 450 | 450 | 450 | 450 | 450 | 450 | 450 | 450 | 450 | 450 | 450 | 450 | 370 | 360 | 288 | 576 | 250 | 500 | 210 | 430 | 210 | 430 |
| Watts/m2 Avg | 210W | 210W | 210W | 210W | 210W | 210W | 210W | 210W | 210W | 210W | 210W | 210W | 210W | 210W | 210W | 150W/sq.m | 150W/sq.m | 130W/sq.m | 130W/sq.m | 130W/sq.m | 130W/sq.m | 100W/sq.m | 100W/sq.m | 100W/sq.m | 100W/sq.m |
| Watts/m2 Max | 620W | 620W | 620W | 620W | 620W | 620W | 620W | 620W | 620W | 620W | 620W | 620W | 620W | 620W | 620W | 500W/sq.m | 500W/sq.m | 400W/sq.m | 400W/sq.m | 400W/sq.m | 400W/sq.m | 300W/sq.m | 300W/sq.m | 300W/sq.m | 300W/sq.m |
| Max Hanging (Tiles) | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 6 | 6 | 8 half panels | 4 full panels | 8 half panels | 4 full panels | 8 half panels | 4 full panels | 8 half panels | 4 full panels |
| Grey Scale | 14bits | 14bits | 14bits | 14bits | 14bits | 14bits | 14bits | 14bits | 14bits | 14bits | 14bits | 14bits | 14bits | 14bits | 14bits | 14 bits | 14 bits | 14 bits | 14 bits | 14 bits | 14 bits | 14 bits | 14 bits | 14 bits | 14 bits |
| Control | Novastar | Novastar | Novastar | Novastar | Novastar | Novastar | Novastar | Novastar | Novastar | Novastar | Novastar | Novastar | Novastar | Novastar | Novastar | ||||||||||
| Scan | 1-26 | 1-26 | 1-26 | 1-20 | 1-20 | 1-16 | 1-16 | 1-20 | 1-20 | 1-20 | 1-20 | 1-16 | 1-16 | 1-16 | 1-16 | 1-16 | 1-16 | 1-16 | 1-16 | 1-8 | 1-8 | 1-8 | 1-8 | 1-8 | 1-8 |
| Contrast | 5000:1 | 5000:1 | 5000:1 | 5000:1 | 5000:1 | 5000:1 | 5000:1 | 5000:1 | 5000:1 | 5000:1 | 5000:1 | 5000:1 | 5000:1 | 5000:1 | 5000:1 | 5000:1 | 5000:1 | 5000:1 | 5000:1 | 5000:1 | 5000:1 | 5000:1 | 5000:1 | 5000:1 | 5000:1 |
| Serviceability | Front/Rear | Front/Rear | Front/Rear | Front/Rear | Front/Rear | Front/Rear | Front/Rear | Front/Rear | Front/Rear | Front/Rear | Front/Rear | Front/Rear | Front/Rear | Front/Rear | Front/Rear | Front& Rear | Front& Rear | Front& Rear | Front& Rear | Front& Rear | Front& Rear | Front& Rear | Front& Rear | Front& Rear | Front& Rear |
| Operating Temp | -20℃~+50℃ | -20℃~+50℃ | -20℃~+50℃ | -20℃~+50℃ | -20℃~+50℃ | -20℃~+50℃ | -20℃~+50℃ | -20℃~+50℃ | -20℃~+50℃ | -20℃~+50℃ | -20℃~+50℃ | -20℃~+50℃ | -20℃~+50℃ | -20℃~+50℃ | -20℃~+50℃ | -40~+60℃ | -40~+60℃ | -40~+60℃ | -40~+60℃ | -40~+60℃ | -40~+60℃ | -40~+60℃ | -40~+60℃ | -40~+60℃ | -40~+60℃ |
| Connectors | NeutrikTrueOne | NeutrikTrueOne | NeutrikTrueOne | NeutrikTrueOne | NeutrikTrueOne | NeutrikTrueOne | NeutrikTrueOne | NeutrikTrueOne | NeutrikTrueOne | NeutrikTrueOne | NeutrikTrueOne | NeutrikTrueOne | NeutrikTrueOne | NeutrikTrueOne | NeutrikTrueOne | Neutrik TrueOne | Neutrik TrueOne | Neutrik TrueOne | Neutrik TrueOne | Neutrik TrueOne | Neutrik TrueOne | Neutrik TrueOne | Neutrik TrueOne | Neutrik TrueOne | Neutrik TrueOne |
| IP Rating | IP40 | IP40 | IP40 | IP40 | IP40 | IP40 | IP40 | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 | IP40 | IP40 | IP40 | IP40 | IP40 | IP40 | IP40 | IP40 | IP40 | IP40 |
| Certifications | CE,FCC,RoHs | CE,FCC,RoHs | CE,FCC,RoHs | CE,FCC,RoHs | CE,FCC,RoHs | CE,FCC,RoHs | CE,FCC,RoHs | CE,FCC,RoHs | CE,FCC,RoHs | CE,FCC,RoHs | CE,FCC,RoHs | CE,FCC,RoHs | CE,FCC,RoHs | CE,FCC,RoHs | CE,FCC,RoHs | CE,FCC,RoHS | CE,FCC,RoHS | CE,FCC,RoHS | CE,FCC,RoHS | CE,FCC,RoHS | CE,FCC,RoHS | CE,FCC,RoHS | CE,FCC,RoHS | CE,FCC,RoHS | CE,FCC,RoHS |
The FLEXCurtain series is built with a unique flexible space saving design and features make it great for everything from effects to high resolution video playback giving you the ability to create innovative and impactful shows. These qualities make FLEXCurtain the most versatile LED curtain rental staging solution available on the market.



Would you like more information? We are happy to provide a free quote and consultation for your LED display technology project.

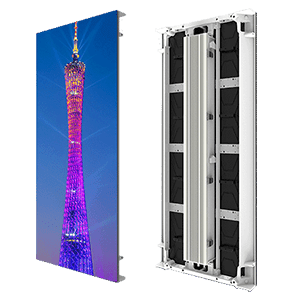

FLEXStorm HD has all the feature of our original FLEXStorm series, but now offers a true high resolution option.
Designed and built to withstand adverse weather conditions, FLEXStorm HD is a breathtaking outdoor LED display option for all types of outdoor installations. This product can be used in outdoor entertainment areas and many other spaces where high resolution pixel pitches are needed.
FLEXStorm HD is available in the following pixel pitches: 2.9mm, 3.9mm, 4.8mm
FLEXStorm HD is one of the highest resolution outdoor products on the market. Pitches available include 2.9mm, 3.9mm, and 4.8mm.
Utilizing an intelligent auto correcting light sensor control system and common cathode technology, your outdoor LED screen installation will be the perfect brightness at all hours of the day to maximize the eyes on your screen.
The FLEXStorm HD panels are available in multiple sizes, making LED screen easier to build. Sizes include: 500×562.5mm, 500x843mm, 500x1125mm
A fully rated outdoor product is key to guaranteeing the longevity of your outdoor LED display.
Each FLEXStorm HD LED tile is both fully front and rear serviceable allowing for easy on site maintenance over the lifespan of your video wall.
Magnetically secured modules that are easy to remove for service.
Creative designs are no longer bound for indoor use. FLEXStorm HD panels can be used to create right angles.
The FLEXStorm HD panels can curve up to 45 degrees to meet your creative outdoor LED display needs.
The panels have ports built into the frame to make connections easier & more secure.
Cabinets have alignment pins for guaranteeing safe and proper alignment of panels horizontally and vertically.
| Pitch | 2.97 | 2.97 | 2.97 | 2.97 | 2.97 | 2.97 | 3.9 | 3.9 | 3.9 | 3.9 | 3.9 | 3.9 | 3.9(VR) | 3.9(VR) | 4.81 | 4.81 | 4.81 | 4.81 | 4.81 | 4.81 | 4.8(VR) | 4.8(VR) |
| Pixels/Sq M | 112896 | 112896 | 112896 | 112896 | 112896 | 112896 | 65536 | 65536 | 65536 | 65536 | 65536 | 65536 | 65536 | 65536 | 43264 | 43264 | 43264 | 43264 | 43264 | 43264 | 43264 | 43264 |
| LED Type | SMD1515 | SMD1515 | SMD1515 | SMD1515 | SMD1515 | SMD1515 | SMD1921 | SMD1921 | SMD1921 | SMD1921 | SMD1921 | SMD1921 | SMD1921 | SMD1921 | SMD1921 | SMD1921 | SMD1921 | SMD1921 | SMD1921 | SMD1921 | SMD1921 | SMD1921 |
| Pixel Matrix (Panel) | 172×344 | 172×258 | 172×172 | 172×344 | 172×258 | 172×172 | 128×256 | 128×192 | 128×128 | 128×256 | 128×192 | 128×128 | 32×256 | 32×256 | 104×208 | 104×156 | 104×104 | 104×208 | 104×156 | 104×104 | 26×208 | 26×208 |
| Nits | 4500 | 4500 | 4500 | 4500 | 4500 | 6000 | 6000 | 6000 | 4500 | 6000 | 4500 | 6000 | 4500 | 6000 | 6000 | 6000 | 4500 | 4500 | 4500 | 6000 | 4500 | |
| Weight (lbs) | 37.5 | 28.6 | 21 | 37.5 | 28.6 | 21 | 37.5 | 28.6 | 21 | 37.5 | 28.6 | 21 | 12 | 37.5 | 28.6 | 21 | 37.5 | 28.6 | 21 | 12 | 12 | |
| Weight (Kg) | 17 | 13 | 9.5 | 17 | 13 | 9.5 | 17 | 13 | 9.5 | 17 | 13 | 9.5 | 5.5 | 5.5 | 17 | 13 | 9.5 | 17 | 13 | 9.5 | 5.5 | 5.5 |
| Refresh Rate Hz | 3840HZ | 3840HZ | 3840HZ | 3840HZ | 3840HZ | 3840HZ | 3840HZ | 3840HZ | 3840HZ | 3840HZ | 3840HZ | 3840HZ | 3840HZ | 3840HZ | 3840HZ | 3840HZ | 3840HZ | 3840HZ | 3840HZ | 3840HZ | 3840HZ | 3840HZ |
| Panel Width (mm) | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 125 | 125 | 500 | 500 | 500 | 500 | 500 | 500 | 125 | 125 |
| Panel Height (mm) | 1000 | 750 | 500 | 1000 | 750 | 500 | 1000 | 750 | 500 | 1000 | 750 | 500 | 1000 | 1000 | 1000 | 750 | 500 | 1000 | 750 | 500 | 1000 | 1000 |
| Panel Depth (mm) | 77 | 77 | 77 | 77 | 77 | 77 | 77 | 77 | 77 | 77 | 77 | 77 | N/A | N/A | 77 | 77 | 77 | 77 | 77 | 77 | N/A | N/A |
| Panel Width (In) | 19.68 | 19.68 | 19.68 | 19.68 | 19.68 | 19.68 | 19.68 | 19.68 | 19.68 | 19.68 | 19.68 | 19.68 | 4.93 | 4.93 | 19.68 | 19.68 | 19.68 | 19.68 | 19.68 | 19.68 | 4.93 | 4.93 |
| Panel Height (In) | 39.36 | 29.53 | 19.68 | 39.36 | 29.53 | 19.68 | 39.36 | 29.53 | 19.68 | 39.36 | 29.53 | 19.68 | 39.36 | 39.36 | 39.36 | 29.53 | 19.68 | 39.36 | 29.53 | 19.68 | 39.36 | 39.36 |
| Panel Depth (In) | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | N/A | N/A | 3 | 3 | 3 | 3 | 3 | 3 | N/A | N/A |
| Panel Sq Meter | 0.5 | 0.375 | 0.25 | 0.5 | 0.375 | 0.25 | 0.5 | 0.375 | 0.25 | 0.5 | 0.375 | 0.25 | 0.125 | 8 | 0.5 | 0.375 | 0.25 | 0.5 | 0.375 | 0.25 | 0.125 | 8 |
| Viewing Angle (Horizontal) | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 150 |
| Viewing Angle (Vertical) | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 90 |
| Watts Per Tile Avg | 59 | 88 | 105 | 59 | 88 | 105 | 98 | 98 | 46 | 69 | 46 | 69 | #REF! | 23 | 52 | 78 | 98 | 52 | 78 | 98 | 26 | 26 |
| Watts Per Tile Max | 175 | 263 | 350 | 175 | 263 | 350 | 325 | 325 | 138 | 206 | 138 | 206 | 325 | 69 | 155 | 233 | 325 | 155 | 233 | 325 | 77.5 | 77.5 |
| Watts/m2 Avg | 210 | 210 | 210 | 210 | 210 | 210 | 195 | 195 | 195 | 195 | 195 | 195 | 195 | 200 | 195 | 195 | 195 | 195 | 195 | 195 | 200 | 200 |
| Watts/m2 Max | 700 | 700 | 700 | 700 | 700 | 700 | 650 | 650 | 650 | 650 | 650 | 650 | 650 | 550 | 650 | 650 | 650 | 650 | 650 | 650 | 620 | 620 |
| Max Hanging (Tiles) | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
| Grey Scale | 14bit | 14bit | 14bit | 14bit | 14bit | 14bit | 14bit | 14bit | 14bit | 14bit | 14bit | 14bit | 14bit | 14bit | 14bit | 14bit | 14bit | 14bit | 14bit | 14bit | 14bit | 14bit |
| Control | Novastar/Colorlight | Novastar/Colorlight | Novastar/Colorlight | Novastar/Colorlight | Novastar/Colorlight | Novastar/Colorlight | Novastar/Colorlight | Novastar/Colorlight | Novastar/Colorlight | Novastar/Colorlight | Novastar/Colorlight | Novastar/Colorlight | Novastar/Colorlight | Novastar/Colorlight | Novastar/Colorlight | Novastar/Colorlight | Novastar/Colorlight | Novastar/Colorlight | Novastar/Colorlight | Novastar/Colorlight | Novastar/Colorlight | Novastar/Colorlight |
| Scan | 1-21 | 1-21 | 1-21 | 1-21 | 1-21 | 1-21 | 1-16 | 1-16 | 1-16 | 1-16 | 1-16 | 1-16 | 1-16 | 1-16 | 1-13 | 1-13 | 1-13 | 1-13 | 1-13 | 1-13 | 1-13 | 1-13 |
| Contrast | 8000:1 | 8000:1 | 8000:1 | 8000:1 | 8000:1 | 8000:1 | 8000:1 | 8000:1 | 8000:1 | 8000:1 | 8000:1 | 8000:1 | 8000:1 | 8000:1 | 8000:1 | 8000:1 | 8000:1 | 8000:1 | 8000:1 | 8000:1 | 8000:1 | 8000:1 |
| Serviceability | Front and Rear | Front and Rear | Front and Rear | Front and Rear | Front and Rear | Front and Rear | Front and Rear | Front and Rear | Front and Rear | Front and Rear | Front and Rear | Front and Rear | Front and Rear | Front and Rear | Front and Rear | Front and Rear | Front and Rear | Front and Rear | Front and Rear | Front and Rear | Front and Rear | Front and Rear |
| Operating Temp | -40~+60 | -40~+60 | -40~+60 | -40~+60 | -40~+60 | -40~+60 | -40~+60 | -40~+60 | -40~+60 | -40~+60 | -40~+60 | -40~+60 | -40~+60 | -40~+60 | -40~+60 | -40~+60 | -40~+60 | -40~+60 | -40~+60 | -40~+60 | -40~+60 | -40~+60 |
| Connectors | Seetronic | Seetronic | Seetronic | Seetronic | Seetronic | Seetronic | Seetronic | Seetronic | Seetronic | Seetronic | Seetronic | Seetronic | Seetronic | Seetronic | Seetronic | Seetronic | Seetronic | Seetronic | Seetronic | Seetronic | Seetronic | Seetronic |
| IP Rating | IP66 | IP66 | IP66 | IP66 | IP66 | IP66 | IP66 | IP66 | IP66 | IP66 | IP66 | IP66 | IP66 | IP66 | IP66 | IP66 | IP66 | IP66 | IP66 | IP66 | IP66 | IP66 |
| Certifications | ETL,FCC | ETL,FCC | ETL,FCC | ETL,FCC | ETL,FCC | ETL,FCC | ETL,FCC | ETL,FCC | ETL,FCC | ETL,FCC | ETL,FCC | ETL,FCC | ETL,FCC | ETL,FCC | ETL,FCC | ETL,FCC | ETL,FCC | ETL,FCC | ETL,FCC | ETL,FCC | ETL,FCC | ETL,FCC |
FLEXStorm HD has all the feature of our original FLEXStorm series, but now offers a true high resolution option. Designed and built to withstand adverse weather conditions, FLEXStorm HD is a breathtaking outdoor LED display option for all types of outdoor installations. This product can be used in outdoor entertainment areas and other spaces where high resolution pixel pitches are needed.



Would you like more information? We are happy to provide a free quote and consultation for your LED display technology project.
FLEXStorm Pro is the industry’s most comprehensive singular outdoor LED product line. Built to withstand the elements from anywhere from roof-top pool decks to the high seas.
This marine-grade LED display panel comes in optimal brightness levels and tighter pixel pitches make it the perfect solution for billboards, amenity decks, and outdoor retail spaces.
Designed to overcome the challenges of traditional outdoor LED displays, FLEXStorm uses intelligent, auto-correcting light sensor controls to ensure perfect visibility all day long.
Larger panel sizes allow for less assembly and quicker installs – making FLEXStorm Pro better than ever for scoreboards, monuments, and other large format applications.
FLEXStorm’s high resolution, signature brightness, and clear visibility even in direct sunlight make it the perfect solution for outdoor displays with brightness offerings between 5,500-10,000 Nits.
Each cabinet’s electronic and data control is easily accessible from both the front and rear of the display, giving you more freedom for installations and enabling easy on-site maintenance.
| Series | Maring-Grade Curved | Maring-Grade Curved | Maring-Grade Curved | Maring-Grade Flat | Maring-Grade Flat | Maring-Grade Flat | Maring-Grade Flat | Maring-Grade Flat | Maring-Grade Flat | Maring-Grade Flat | |||||||||
| Pitch | 5.7 | 5.7 | 6 | 6 | 8 | 8 | 10 | 10 | 10 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 |
| Pixels/Sq M | 30625 | 30625 | 22500 | 22500 | 15625 | 15625 | 10000 | 10000 | 10000 | 160000 | 160000 | 160000 | 160000 | 160000 | 160000 | 160000 | 160000 | 160000 | 160000 |
| LED Type | SMD2727 | SMD2727 | SMD2727 | SMD2727 | SMD3535 | SMD3535 | SMD3535 | SMD3535 | SMD2727 | Gold wire 1415 LED | Gold wire 1415 LED | Gold wire 1415 LED | SMD1415 | Gold Wire 1415 LED | Gold Wire 1415 LED | SMD 1415 | SMD 1415 | SMD 1415 | SMD 1415 |
| Pixel Matrix (Panel) | 168×168 | 168×168 | 160×160 | 160×160 | 120×120 | 120×120 | 96×96 | 96×96 | 96×96 | 200*200 | 200*300 | 200*400 | 100*200 | 100*200 | 200*300 | 200*200 | 200*200 | 200*400 | 200*400 |
| Nits | 6500 | 6000 | 7000 | 6000 | 10000 | 6500 | 10000 | 6500 | 6500 | 5500 | 5500 | 5500 | 5500 | 5500 | 5500 | 5500 | 5500 | 5500 | 5500 |
| Weight (lbs) | 61.7 | 61.7 | 61.7 | 61.7 | 61.7 | 61.7 | 61.7 | 61.7 | 61.7 | 22 | 29.76 | 44.1 | 9.92 | 29.76 | 22 | 22 | 44.1 | 44.1 | |
| Weight (Kg) | 28 | 28 | 28 | 28 | 28 | 28 | 28 | 28 | 28 | 10 | 13.5 | 20 | 4.5 | 13.5 | 10 | 10 | 20 | 20 | |
| Refresh Rate Hz | 3840 | 3840 | 3840 | 3840 | 3840 | 3840 | 3840 | 3840 | 3840 | 3840HZ | 3840HZ | 3840HZ | 3840HZ | 3840HZ | 3840HZ | 3840HZ | 3840HZ | 3840HZ | 3840HZ |
| Panel Width (mm) | 960 | 960 | 960 | 960 | 960 | 960 | 960 | 960 | 960 | 500 | 500 | 500 | 250 | 250 | 500 | 500 | 500 | 500 | 500 |
| Panel Height (mm) | 960 | 960 | 960 | 960 | 960 | 960 | 960 | 960 | 960 | 500 | 750 | 1000 | 500 | 500 | 750 | 500 | 500 | 1000 | 1000 |
| Panel Depth (mm) | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 84 | 84 | 84 | 84 | 84 | 84 | 84 | 85.55 | 85.55 | 85.55 |
| Panel Width (In) | 37.8 | 37.8 | 37.8 | 37.8 | 37.8 | 37.8 | 37.8 | 37.8 | 37.8 | 19.68 | 19.68 | 19.68 | 9.84 | 9.84 | 19.68 | 19.68 | 19.68 | 19.68 | 19.68 |
| Panel Height (In) | 37.8 | 37.8 | 37.8 | 37.8 | 37.8 | 37.8 | 37.8 | 37.8 | 37.8 | 19.68 | 29.53 | 39.37 | 19.68 | 19.68 | 29.62 | 19.68 | 19.68 | 39.36 | 39.36 |
| Panel Depth (In) | 2.95 | 2.95 | 2.95 | 2.95 | 2.95 | 2.95 | 2.95 | 2.95 | 2.95 | 3.31 | 3.31 | 3.31 | 3.37 | 3.37 | 3.37 | 3.37 | 3.37 | 3.37 | 3.37 |
| Panel Sq Meter | 1.08 | 1.08 | 1.08 | 1.08 | 1.08 | 1.08 | 1.08 | 1.08 | 1.08 | 4 | 2.67 | 2 | 0.125 | 0.125 | 0.375 | 0.25 | 0.25 | 0.5 | 0.5 |
| Viewing Angle (Horizontal) | 160 | 160 | 160 | 160 | 160 | 160 | 160 | 160 | 160 | 145 | 145 | 145 | 145 | 145 | 145 | 145 | 145 | 145 | 145 |
| Viewing Angle (Vertical) | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 145 | 145 | 145 | 145 | 145 | 145 | 145 | 145 | 145 | 145 |
| Watts Per Tile Avg | 175 | 175 | 175 | 175 | 165 | 165 | 165 | 165 | 165 | 100 | 150 | 200 | 50 | 50 | 150 | 100 | 100 | 200 | 200 |
| Watts Per Tile Max | 580 | 580 | 580 | 580 | 550 | 550 | 550 | 550 | 550 | 300 | 450 | 600 | 150 | 150 | 450 | 300 | 300 | 600 | 600 |
| Watts/m2 Avg | 190 | 190 | 190 | 190 | 180 | 180 | 180 | 180 | 180 | 420 | 420 | 420 | 420 | 420 | 420 | 420 | 420 | 420 | 420 |
| Watts/m2 Max | 630 | 630 | 630 | 630 | 600 | 600 | 600 | 600 | 600 | 1200 | 1200 | 1200 | 1200 | 1200 | 1200 | 1200 | 1200 | 1200 | 1200 |
| Max Hanging (Tiles) | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | 15 | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
| Grey Scale | 14bit | 14bit | 14bit | 14bit | 14bit | 14bit | 14bit | 14bit | 14bit | 32768 | 14bit | 14bit | 14bit | 14bit | 14bit | 14bit | 14bit | 14bit | 14bit |
| Control | Novastar/Colorlight | Novastar/Colorlight | Novastar/Colorlight | Novastar/Colorlight | Novastar/Colorlight | Novastar/Colorlight | Novastar/Colorlight | Novastar/Colorlight | Novastar/Colorlight | Novastar | Novastar | Novastar | Novastar | Novastar | Novastar | Novastar | Novastar | Novastar | Novastar |
| Scan | 1-8 | 1/8 | 1-6 | 1/6 | 1-4 | 1/4 | 1-3 | 1/3 | 1/3 | 1/25 | 1/25 | 1/25 | 1/25 | 1/25 | 1/26 | 1/25 | 1/25 | 1/25 | 1/25 |
| Contrast | 8000:1 | 8000:1 | 8000:1 | 8000:1 | 8000:1 | 8000:1 | 8000:1 | 8000:1 | 8000:1 | 4000:1 | 4000:1 | 4000:1 | 4000:1 | 4000:1 | 4000:1 | 4000:1 | 4000:1 | 4000:1 | 4000:1 |
| Serviceability | Front and Rear | Front and Rear | Front and Rear | Front and Rear | Front and Rear | Front and Rear | Front and Rear | Front and Rear | Front and Rear | Front and Rear | Front and Rear | Front and Rear | Front and Rear | Front and Rear | Front and Rear | Front and Rear | Front and Rear | Front and Rear | Front and Rear |
| Operating Temp | -40~+60 | -40~+60 | -40~+60 | -40~+60 | -40~+60 | -40~+60 | -40~+60 | -40~+60 | -40~+60 | -20℃~+50℃(customized below-20℃) | -20℃~+50℃(customized below-20℃) | -20℃~+50℃(customized below-20℃) | -20℃~+50℃(customized below-20℃) | -20℃~+50℃(customized below-20℃) | -20℃~+50℃(customized below-20℃) | -20℃~+50℃(customized below-20℃) | -20℃~+50℃(customized below-20℃) | -20℃~+50℃(customized below-20℃) | -20℃~+50℃(customized below-20℃) |
| Connectors | Seetronic | Seetronic | Seetronic | Seetronic | Seetronic | Seetronic | Seetronic | Seetronic | Seetronic | Yes | Seetronic | Seetronic | Seetronic | Seetronic | Seetronic | Seetronic | Seetronic | Seetronic | Seetronic |
| IP Rating | IP66 | IP66 | IP66 | IP66 | IP66 | IP66 | IP66 | IP66 | IP66 | IP65 | IP65 | IP65 | IP65 | IP65 | IP66 | IP65 | IP65 | IP65 | IP65 |
| Certifications | ETL, FCC | ETL, FCC | ETL, FCC | ETL, FCC | ETL, FCC | ETL, FCC | ETL, FCC | ETL, FCC | ETL, FCC | ETL FCC CE ROHS | ETL FCC CE ROHS | ETL FCC CE ROHS | ETL FCC CE ROHS | ETL FCC CE ROHS | ETL FCC CE ROHS | ETL FCC CE ROHS | ETL FCC CE ROHS | ETL FCC CE ROHS | ETL FCC CE ROHS |
FLEXStorm Pro is the industry’s most comprehensive singular outdoor LED product line. Built to withstand the elements from anywhere from roof-top pool decks to the high seas. Optimal brightness levels and tighter pixel pitches make it the perfect solution for billboards, amenity decks, and outdoor retail spaces.



Would you like more information? We are happy to provide a free quote and consultation for your LED display technology project.

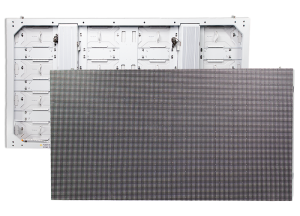

This series of outdoor products is rated to withstand the harshest weather conditions while offering brightness levels 20% higher than any other LED products on the market and two times that of outdoor TVs.
FLEXStorm is the perfect solution for billboards, amenity decks, parks, building-mounted displays, and outdoor retail spaces.
Customers across the U.S. have selected outdoor LED from PixelFLEX because of our commitment to providing a superior product, a U.S.-based warranty, and a comprehensive in- house service program.


The key to a quality outdoor LED display is variable brightness for any condition day or night. FLEXStorm has brightness offerings between 4500-10000 Nits.
A fully rated outdoor product is key to guaranteeing the longevity of your outdoor LED display.
FLEXStorm is the FIRST of its kind designed to meet the demands of outdoor video screen design offering both 4:3 and 16:9 scaling ratios. The 16:9 ratio cabinet configuration helps achieve the right screen dimensions for your specific LED screen build.
Each cabinets electronics and data control is easily accessible from either the front or rear of the display giving you more freedom for installations.
Cabinets have alignment pins and easy bolt through interlocking guaranteeing safe and proper alignment.
Waterproof Nuetrik connectors guarantee a proper seal on panel data and power signal.
Modules are easily removed with an allen key for access to components.
Utilizing an intelligent auto correcting light sensor control system, your outdoor LED screen installation will be the perfect brightness at all hours of the day to maximize the eyes on your screen.
FLEXStorm
FLEXStorm can create right angles as well as curve up to 0-90 degrees to meet your creative display needs outdoors.
FLEXStorm
FLEXStorm increases your creative capabilities with its ability to create right angles.
No Specification sheet available.
It is rated to withstand the harshest weather conditions while offering brightness levels 20% higher than any other LED products on the market and two times that of outdoor TVs. FLEXStorm is the perfect solution for billboards, amenity decks, parks, building- mounted displays, and outdoor retail spaces.



Would you like more information? We are happy to provide a free quote and consultation for your LED display technology project.
FLEXTour is a robust 500 x 500mm LED panel that is designed for the high demands of the touring production world. Each tile is modular in design with unique rigging & curving capabilities. Each tile is front serviceable for easy on-site maintenance. Its integrated climbing ladder allows technicians quick access to displays flown overhead. FLEXTour is the premier rental staging product on the market.
FLEXTour is available in the following pixel pitches: 1.56mm, 1.9mm, 2.6mm, 2.9mm, 3.9mm*, 4.8mm*
* These pixel pitches are also available in an outdoor model.
FLEXTour offers pixel pitches from 1.56mm – 4.8mm which allow you to create high resolution LED displays for your build.
FLEXTour has a high refresh rate which makes it ideal for television or any other video production.
Each tile is modular in design with unique rigging capabilities.
Designed to protect corners in both transit and staging.
Ergonomic handle placement for easy handling during setup and teardown.
Heatsink dissapates heat to prevent damage to internal electronics.
Allows for rapid change of data and power enclosure.
FLEXTour can curve at five angles (-6, -3, 0, +3, +6 degrees) with the turn of a dial, giving you creative freedom.
An integrated climbing ladder allows for onsite technicians to service the screen and have secure footing.
| Pitch | 1.56 | 1.95 | 2.6 | 2.6 | 2.97 | 3.9 | 2.9 | 3.9 | 4.8 | 3.9 | 4.8 | ||||||
| Pixels/Sq M | 409600 | 262144 | 147456 | 147456 | 112896 | 65536 | 112896 | 112896 | 65536 | 65536 | 65536 | 43264 | 43264 | 65536 | 65536 | 43264 | 43264 |
| LED Type | Mini 4 in 1 | Mini 4 in 1 | SMD2121 | Mini 4 in 1 1/8scan | SMD2121 | SMD2121 | SMD1921 | SMD1921 | SMD1921 | SMD1921 | SMD1921 | SMD1921 | SMD1921 | SMD19221 | SMD1921 | SMD1921 | SMD1921 |
| Pixel Matrix (Panel) | 256×256 | 256×256 | 192×192 | 192×192 | 172×172 | 128×128 | 172×172 | 172×172 | 128×128 | 128×128 | 128×128 | 104×104 | 104×104 | 128×256 | 128×256 | 104×208 | 104×208 |
| Nits | 600 | 800 | 1000 | 1500 | 1000 | 1000 | 4500 | 4500 | 5000 | 5000 | 5000 | 4500 | 4500 | 5000 | 6000 | 4500 | 4500 |
| Weight (lbs) | 18.73 | 18.73 | 18.73 | 18.73 | 18.73 | 18.73 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 27.5 | 27.5 | 27.5 | 27.5 |
| Weight (Kg) | 8.5 | 8.5 | 8.5 | 8.5 | 8.5 | 8.5 | 9.1 | 9.1 | 9.1 | 9.1 | 9.1 | 9.1 | 9.1 | 12.5 | 12.5 | 12.5 | 12.5 |
| Refresh Rate Hz | 3840 | 3840 | 3840 | 3840 | 3840 | 3840 | 3840 | 3840 | 3840 | 3840 | 3840 | 3840 | 3840 | 3840 | 3840 | 3840 | 3840 |
| Panel Width (mm) | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 |
| Panel Height (mm) | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 1000 | 1000 | 1000 | 1000 |
| Panel Depth (mm) | 75.5 | 75.5 | 75.5 | 75.5 | 75.5 | 75.5 | 75.5 | 75.5 | 75.5 | 75.5 | 75.5 | 75.5 | 75.5 | 75.5 | 75.5 | 75.5 | 75.5 |
| Panel Width (In) | 19.68 | 19.68 | 19.68 | 19.68 | 19.68 | 19.68 | 19.68 | 19.68 | 19.68 | 19.68 | 19.68 | 19.68 | 19.68 | 19.68 | 19.68 | 19.68 | 19.68 |
| Panel Height (In) | 19.68 | 19.68 | 19.68 | 19.68 | 19.68 | 19.68 | 19.68 | 19.68 | 19.68 | 19.68 | 19.68 | 19.68 | 19.68 | 39.36 | 39.36 | 39.36 | 39.36 |
| Panel Depth (In) | 2.97 | 2.97 | 2.97 | 2.97 | 2.97 | 2.97 | 2.97 | 2.97 | 2.97 | 2.97 | 2.97 | 2.97 | 2.97 | 2.97 | 2.97 | 2.97 | 2.97 |
| Panel Sq Meter | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 2 | 2 | 2 | 2 |
| Viewing Angle (Horizontal) | 160 | 160 | 160 | 160 | 160 | 160 | 160 | 160 | 160 | 160 | 160 | 160 | 160 | 160 | 160 | 160 | 160 |
| Viewing Angle (Vertical) | 140 | 140 | 140 | 140 | 140 | 140 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 90 |
| Watts Per Tile Avg | 55 | 55 | 45 | 45 | 42 | 42 | 53 | 53 | 53 | 53 | 65 | 53 | 65 | 140 | 140 | 130 | 130 |
| Watts Per Tile Max | 140 | 140 | 110 | 110 | 105 | 105 | 135 | 135 | 135 | 135 | 160 | 135 | 160 | 350 | 350 | 320 | 320 |
| Watts/m2 Avg | 220 | 220 | 170 | 170 | 165 | 165 | 210 | 210 | 210 | 210 | 255 | 210 | 255 | 280 | 280 | 255 | 255 |
| Watts/m2 Max | 560 | 560 | 440 | 440 | 420 | 420 | 540 | 540 | 540 | 540 | 640 | 540 | 640 | 700 | 700 | 640 | 640 |
| Max Hanging (Tiles) | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 10 | 10 | 10 | 10 |
| Grey Scale | 14bit | 14bit | 14bit | 14bit | 14bit | 14bit | 14bit | 14bit | 14bit | 14bit | 14bit | 14bit | 14bit | 14bit | 14bit | 14bit | 14bit |
| Control | Novastar/ Colorlight | Novastar/ Colorlight | Novastar/ Colorlight | Novastar/ Colorlight | Novastar/ Colorlight | Novastar/ Colorlight | Novastar/ Colorlight | Novastar/ Colorlight | Novastar/ Colorlight | Novastar/ Colorlight | Novastar/ Colorlight | Novastar/ Colorlight | Novastar/ Colorlight | Novastar/ Colorlight | Novastar/ Colorlight | Novastar/ Colorlight | Novastar/ Colorlight |
| Scan | Jan-45 | Jan-32 | Jan-32 | 01-Aug | Jan-32 | Jan-28 | Jan-21 | Jan-21 | Jan-16 | Jan-16 | Jan-16 | Jan-13 | Jan-13 | Jan-16 | Jan-16 | Jan-13 | Jan-13 |
| Contrast | 8000:01:00 | 8000:01:00 | 8000:01:00 | 8000:01:00 | 8000:01:00 | 8000:01:00 | 8000:01:00 | 8000:01:00 | 8000:01:00 | 8000:01:00 | 8000:01:00 | 8000:01:00 | 8000:01:00 | 8000:01:00 | 8000:01:00 | 8000:01:00 | 8000:01:00 |
| Serviceability | Rear | Rear | Rear | Rear | Rear | Rear | Rear | Rear | Rear | Rear | Rear | Rear | Rear | Rear | Rear | Rear | Rear |
| Operating Temp | -20~ +40 | -20~ +40 | -20~ +40 | -20~ +40 | -20~ +40 | -20~ +40 | -20~ +45 | -20~ +45 | -20~ +45 | -20~ +45 | -20~ +45 | -20~ +45 | -20~ +45 | -20~ +45 | -20~ +45 | -20~ +45 | -20~ +45 |
| Connectors | Seetronic | Seetronic | Seetronic | Seetronic | Seetronic | Seetronic | Seetronic | Seetronic | Seetronic | Seetronic | Seetronic | Seetronic | Seetronic | Seetronic | Seetronic | Seetronic | Seetronic |
| IP Rating | IP20 | IP20 | IP20 | IP20 | IP20 | IP20 | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 |
| Certifications | ETL, FCC | ETL, FCC | ETL, FCC | ETL, FCC | ETL, FCC | ETL, FCC | ETL, FCC | ETL, FCC | ETL, FCC | ETL, FCC | ETL, FCC | ETL, FCC | ETL, FCC | ETL, FCC | ETL, FCC | ETL, FCC | ETL, FCC |
Modular and robust, with rigging and curving capabilities suitable for both traditional and unique offset designs.



Would you like more information? We are happy to provide a free quote and consultation for your LED display technology project.
This ultra-thin transparent LED product is designed to captivate audiences with stunning, lifelike imagery created with Muxwave. The module thickness is less than 2mm and can be surface-mounted to the front or back side of clear surfaces. This innovative solution seamlessly curves to integrate see-through LED technology into rounded or angled shapes that offer endless creative capabilities.
Users can create mesmerizing displays that transcend traditional limitations, offering endless possibilities for advertising, entertainment, and immersive storytelling. Its versatility allows for seamless integration into various settings, from retail environments to events and exhibitions. Experience the future of visual communication with Muxwave, where imagination meets reality, and every moment becomes extraordinary.
Premium transparency without a splicing structure provides a full-screen transparent display that appears invisible to the viewer.
External slim design offers LED technology that is nearly the lightest solution on the market at only 6g/m.
The depth of this revolutionary product is only 1.8mm thick and can offer seamless curved surface mounting.
| Pitch | 2.5 | 3.91 | 3.91 | 6.25 | 6.25 | 10 | 2.5 | 3.91 | 10 | 3.91 | 6.25 | |
| Pixels/Sq M | 1,60,000 | 65,536 | 65,536 | 25,600 | 25,600 | 10,000 | 1,60,000 | 65,536 | 10,000 | 65,536 | 25,600 | |
| Transparency Rate | 70% | 80% | 80% | 90% | 90% | 85% | 70% | 80% | 85% | 92% | 95%% | |
| LED Type | SMD1515 | SMD2121 | SMD2121 | SMD2121 | SMD2121 | SMD2121 | SMD1515 | SMD2121 | SMD2121 | SMD2121 | SMD2121 | |
| Pixel Matrix (Panel) | 50*400 | 64*256 | 64*300 | 40*188 | 40*236 | 25*120 | 50*470 | 64*376 | 25*120 | 64*512 | 40*320 | |
| Nits | 1200 | 3000 | 3000 | 5000 | 5000 | 4000 | 1200 | 2000 | 5000 | 3000 | 5000 | |
| Weight (lbs) Set | 3.19 | 3.53 | 3.53 | 3.53 | 3.53 | 2.65 | 3.41 | 3.47 | 2.97 | 3.53 | 3.53 | |
| Weight (Kg) Set | 1.45 | 1.6 | 1.6 | 1.6 | 1.6 | 1.2 | 1.55 | 1.57 | 1.35 | 1.6 | 1.6 | |
| Refresh Rate Hz | 3840 | 3840 | 3840 | 3840 | 3840 | 3840 | 3840Hz | 3840Hz | 3840Hz | 3840Hz | 3840Hz | |
| Panel Width (mm) | 125 | 250 | 250 | 250 | 250 | 250 | 125 | 250 | 250 | 250 | 250 | |
| Panel Height (mm) | 1000 | 1025 | 1200 | 1200 | 1500 | 1000 | 1200 | 1500 | 1200 | 2000 | 2000 | |
| Panel Depth (mm) | 1.8 | 1.8 | 1.8 | 1.8 | 1.8 | 1.8 | 1.8 | 1.8 | 1.8 | 1.8 | 1.8 | |
| Panel Width (In) | 4.92 | 9.84 | 9.84 | 9.84 | 9.84 | 9.84 | 4.92 | 9.84 | 9.84 | 9.84 | 9.84 | |
| Panel Height (In) | 39.37 | 40.35 | 47.24 | 47.24 | 59.1 | 39.37 | 47.24 | 59.05 | 47.24 | 78.74 | 78.74 | |
| Panel Depth (In) | 0.07 | 0.07 | 0.07 | 0.07 | 0.07 | 0.07 | 0.078 | 0.078 | 0.078 | 0.07 | 0.07 | |
| Panel Sq Meter | 0.125 | 0.256 | 0.3 | 0.3 | 0.375 | 0.25 | 0.15 | 0.375 | 0.3 | 0.5 | 0.5 | |
| Viewing Angle (Horizontal) | 160 | 160 | 160 | 160 | 160 | 160 | 160 | 160 | 160 | 160 | 160 | |
| Viewing Angle (Vertical) | 160 | 160 | 160 | 160 | 160 | 160 | 160 | 160 | 160 | 160 | 160 | |
| Watts Per Tile Avg | 43.75 | 93.75 | 112.5 | 112.5 | 140.6 | 93.75 | 52.5 | 140.6 | 112.5 | 167 | 167 | |
| Watts Per Tile Max | 100 | 250 | 300 | 300 | 375 | 250 | 120 | 375 | 300 | 500 | 500 | |
| Watts/m2 Avg | 350 | 375 | 375 | 375 | 375 | 375 | 350 | 375 | 375 | 375 | 375 | |
| Watts/m2 Max | 800 | 1000 | 1000 | 1000 | 1000 | 1000 | 800 | 1000 | 1000 | 1000 | 1000 | |
| Max Hanging (Tiles) | 32 | 40 | 40 | 40 | 40 | 40 | 32 | 32 | 32 | 40 | 40 | |
| Grey Scale | 16 bit | 16 bit | 16 bit | 16 bit | 16 bit | 16 bit | 16 bits | 16 bits | 16 bits | 16 bit | 16 bit | |
| Control | Nova/Colorlight | Nova/Colorlight | Nova/Colorlight | Nova/Colorlight | Nova/Colorlight | Nova/Colorlight | Nova/Colorlight | Nova/Colorlight | Nova/Colorlight | Nova/Colorlight | Nova/Colorlight | |
| Scan | Static Driving (Single Pixel Single Control) | “Static Driving (Single Pixel Single Control)” | “Static Driving (Single Pixel Single Control)” | “Static Driving (Single Pixel Single Control)” | Static Driving (Single Pixel Single Control) | Static Driving (Single Pixel Single Control) | Static Driving (Single Pixel Single Control) | “Static Driving (Single Pixel Single Control)” | “Static Driving (Single Pixel Single Control)” | |||
| Contrast | 9000:1 | 9000:1 | 9000:1 | 9000:1 | 9000:1 | 9000:1 | 9000:1 | 9000:1 | 9000:1 | 9000:1 | 9000:1 | |
| Serviceability | Front | Front | Front | Front | Front | Front | Front | Front | Front | Front | Front | |
| Operating Temp | -20℃~50℃ | -20℃~50℃ | -20℃~50℃ | -20℃~50℃ | -20℃~50℃ | -20℃~50℃ | -20℃~50℃ | -20℃~50℃ | -20℃~50℃ | -20℃~50℃ | -20℃~50℃ | |
| Connectors | IDC | IDC | IDC | IDC | iDC | IDC | IDC | IDC | IDC | IDC | IDC | |
| IP Rating | IP20 | IP20 | IP20 | IP20 | IP20 | IP20 | IP20 | IP20 | IP20 | IP20 | IP20 | |
| Certifications | / | CCC, UL, RoHS, PSE, FCC, ETL, CNAS&CMA, CE, CB | CCC, UL, RoHS, PSE, FCC, ETL, CNAS&CMA, CE, CB | CCC, UL, RoHS, PSE, FCC, ETL, CNAS&CMA, CE, CB | CCC, UL, RoHS, PSE, FCC, ETL, CNAS&CMA, CE, CB | CCC, UL, RoHS, PSE, FCC, ETL, CNAS&CMA, CE, CB | / | CCC, UL, RoHS, PSE, FCC, ETL, CNAS&CMA, CE, CB | CCC, UL, RoHS, PSE, FCC, ETL, CNAS&CMA, CE, CB | CCC, UL, RoHS, PSE, FCC, ETL, CNAS&CMA, CE, CB |
This ultra-thin LED mesh product is designed to adhere to flat or curved clear surfaces to create transparent video experiences.
Create mesmerizing displays that transcend traditional limitations, offering endless possibilities for advertising, entertainment, and immersive storytelling.













Would you like more information? We are happy to provide a free quote and consultation for your LED display technology project.
